1. The brightness range of industrial LCD

In the selection of industrial LCD screens, we often have to pay attention to various parameters, among which the brightness of the screen is the most concern to many customers. Generally speaking, the brightness of industrial LCD screens ranges from 250 nits to over 1000 nits, so how do test the brightness of LCD?

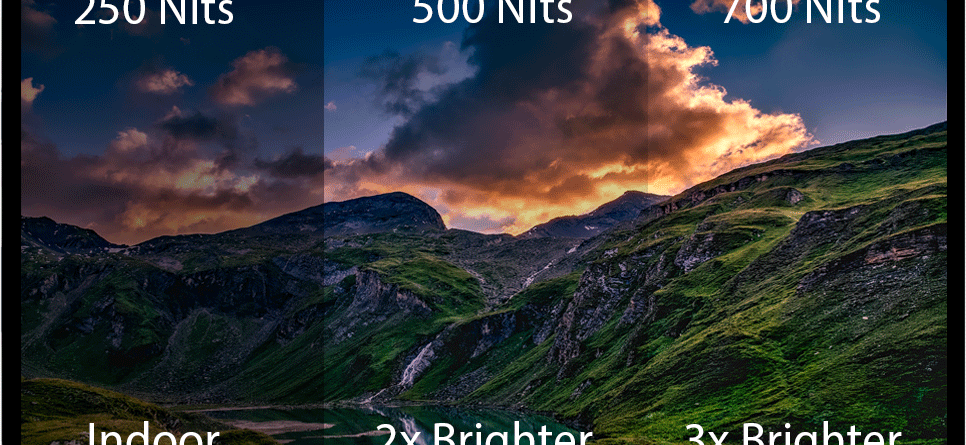

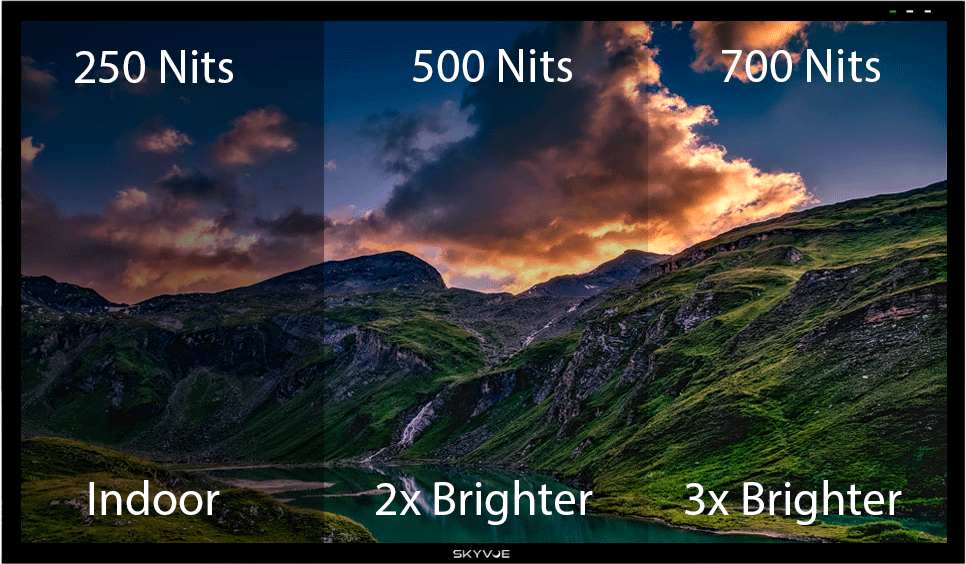

Brightness of Industrial LCD

2. Test method for the brightness of industrial LCD

1) Hardware test method

The luminance colorimeter adopts the method of a three-color filter, which can measure luminance, color temperature celeb, cieluv, color difference, etc., and can switch four measurement angles. It is suitable for low-brightness measurement in low-brightness areas with small measuring angles (0.1°/0.2°). For long-distance measurement, the extension cord can be used to measure the host and sensor separately. The instrument’s additional keyboard (optional) can be used for a variety of functions, including inputting color coefficients and brightness deviations. In addition, it can also be used for data storage, analysis, and printing on computers, and has a wide range of applications in lighting engineering, film, and architecture.

2) Software testing method

With the help of professional industrial LCD screen brightness test software, not only can detect industrial LCD, but also CRT (Cathode Ray Tube) displays. It includes many test items, which can detect important indicators such as LCD color, response time, text display effect, and “dead pixels”.

Golden Margins –
Entire Range of Touchscreen Products

This image has an empty alt attribute; its file name is Optical-Bonding-1_jpg-1024x641.jpg
Optical Bonding Technology
This image has an empty alt attribute; its file name is 55正-3-1024x616.jpg
Golden Margins Capacitive Touch Panel PCs

We hope you found these touchscreen or panel PCs fundamentals informative. Goldenmargins offers a broad selection of Industrial Touchscreen Monitors and Touch Panel PCs in various sizes and configurations, including medical touch screens, sunlight-readable touch screens, open-frame touch screens, and waterproof touch panels, as well as other unique touch screen or panel PC designs. You can learn more about our services HERE or by calling us at +86 755 23191996 or sales@goldenmargins.com
