The LCD driver IC plays a key role in the LCD screen and is the core component of the LCD screen imaging system. It is mainly responsible for driving the display and controlling the driving current. LCD screen driver IC integrates a variety of functions, including resistors, regulators, comparators and power transistors, and supports static and dynamic driving methods. It also has internal oscillator, RAM, watchdog timer, buzzer driver and other functions, which can adapt to different LCD display needs. Through specific instruction modes, such as command mode and data mode, the LCD display content is controlled and updated to achieve clear and stable image display effects.

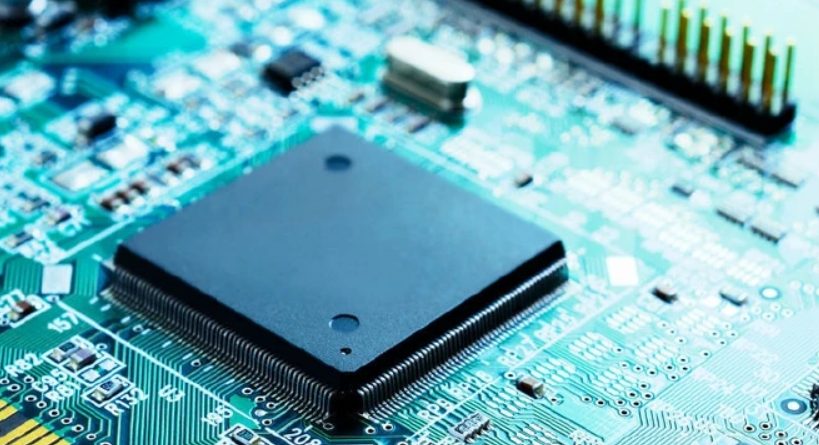

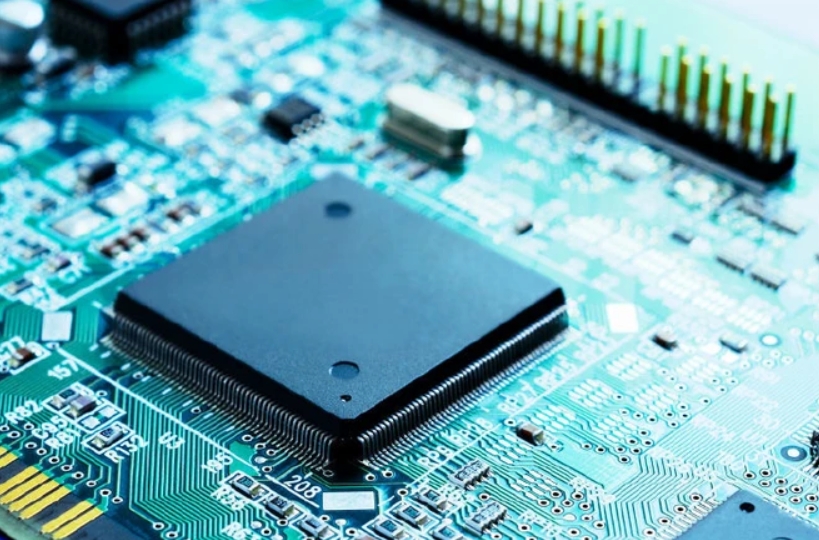

LCD driver IC

Characteristics of large-size LCD driver IC

First, high voltage technology. The higher the voltage in the analog circuit, the stronger the driving capability. Therefore, large-size LCD driver ICs adopt high-voltage manufacturing processes. Usually the Source Driver IC is 10~12V, and the Gate Driver IC is even higher, up to 40V.

Second, the operating frequency is high. The resolution of liquid crystal displays is getting higher and higher, which means that the number of scanning columns increases, the Gate LCD Driver IC must continuously increase the switching frequency, and the Source Driver IC must continuously increase the scanning frequency.

Third, the packaging process is special. LCD driver IC is usually bound to the LCD panel, so the thickness must be as thin as possible, usually using high-cost TCP packaging. There are also those that are particularly pursuing thinness, using COG packaging, and then there is the COF packaging that is currently emerging.

Fourth, the number of pins is extremely large. Gate Driver IC has at least 256 pins, Source Driver IC has at least 384 pins.

In LCD, IC (Integrated Circuit) plays several important roles, mainly including the following aspects:

Control signal generation:

LCD requires various control signals to operate, such as row/column selection signals, data writing/reading signals, etc. The IC is responsible for generating and managing these control signals to ensure that the LCD displays images normally.

Data processing:

The IC processes the incoming data and converts it into the format required by the LCD. This includes converting digital signals into corresponding voltage signals to control the arrangement of liquid crystal molecules to achieve different display effects.

Drive current control:

The liquid crystal molecules in the LCD panel require a certain amount of current to control its display state. The LCD driver IC is responsible for providing appropriate drive current to ensure the brightness and contrast of the display. The IC is responsible for handling communication with a microcontroller or other master control device and supports a variety of interface protocols (such as SPI, I2C, etc.) to achieve effective data transmission.
