How to Distinguish Lcd Display and Lcm Module?

Back to Blog

Share this post

Only when people are in the display industry do they know that there are so many technical terms. If a lot of customers don’t know much, it’s hard to tell them apart. Displays go by many names, but let’s take LCD screens as an example. What are LCM modules and how can they be distinguished?

The LCD display is the abbreviation of Liquid Crystal Display.

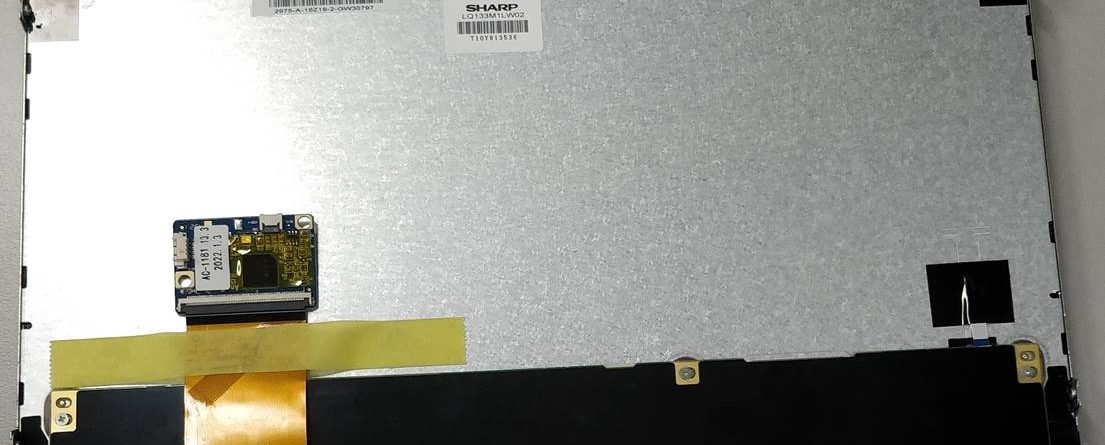

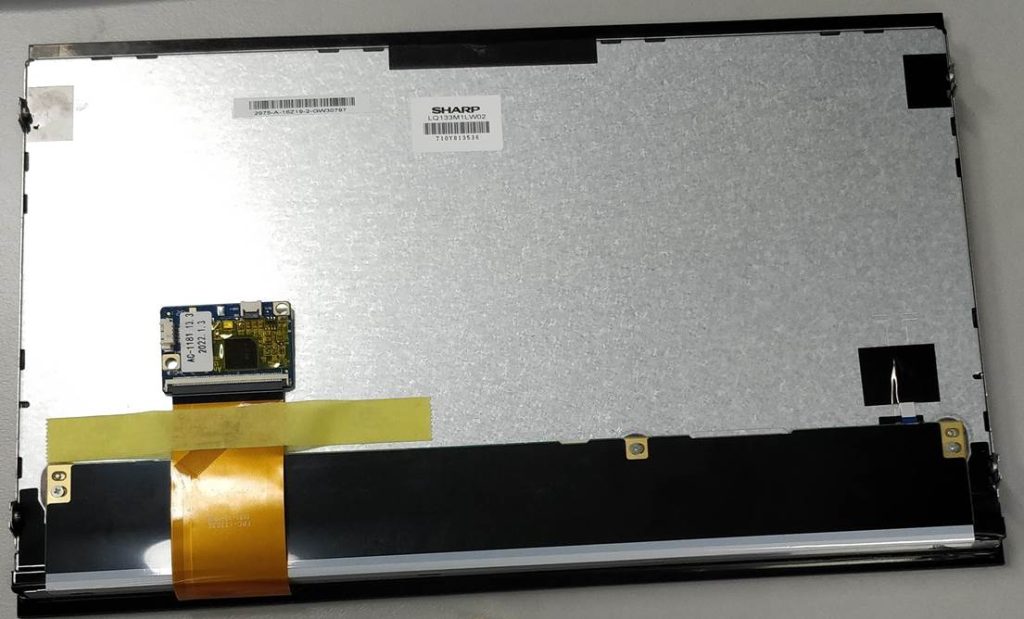

The LCM module is a collection of various devices, including LCD, chip, and circuit board, that control the display mode and content of the LCD display monitors. It can be said that LCD is the front desk for displaying content, while LCM is the entire operating system, including the front desk.

LCD display screen

Ⅰ. The components of the LCD display screen

1. LCD=Liquid Crystal Display

Mainly refers to LCD panel, including polarizer, color filter, liquid crystal glass (glass clamp liquid crystal), and TFT control unit.

2. LCM=Liquide Crystal Module

Including LCD panel and the following accessories, mainly backlight modules, including light-enhancing film, light-transmitting film, reflector, diffusion film, bracket, LED lamp (light source), FPC, and components.

But in fact, generally speaking, both are regarded as having the same meaning.

Ⅱ. The main differences between LCD display screens and LCM module

1. LCM has a font library; LCD basically does not have a font library.

2. LCD generally refers to a separate screen; LCM includes the corresponding drive circuit and control circuit and can be directly connected to the single-chip microcomputer.

In simple terms, the LCD module is the LCD + LED backlight + PCB + iron frame. The module is mainly divided into screen components and backlight components. The two parts are assembled together but work independently of each other (i.e. the circuit is not related). The LCD works by emitting a uniform surface light from a backlit component that travels through the LCD to our eyes. The function of the screen is to process these lights by pixels to display the image.
