Golden Margins Industrial 15.3.inch Bar Type Touch Monitor

Short product description:

15.3 inch bar type touch monitor has a color active matrix TFT LCD module, which is using amorphous silicon TFT’s (Thin Film Transistors) as an active switching device. This module has a 15.3-inch diagonally measured active area with SXGA resolutions (1280 horizontal by 342 vertical pixels array). Each pixel is divided into RED, GREEN, and BLUE dots which are arranged in vertical stripes and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.

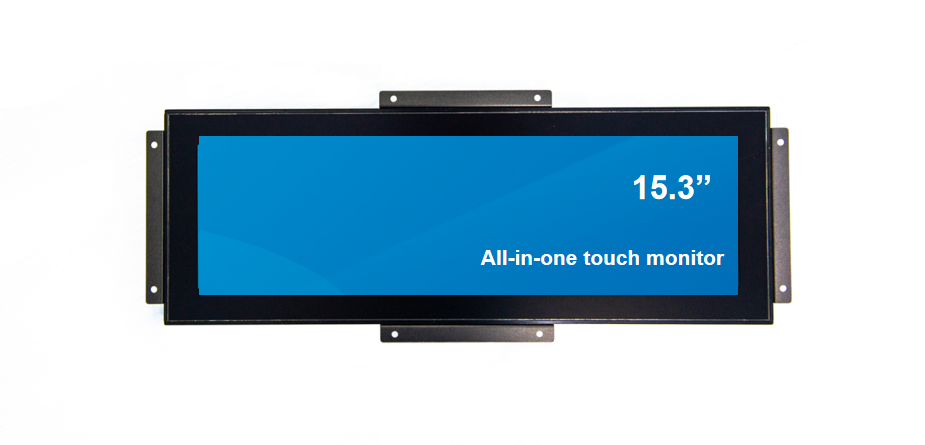

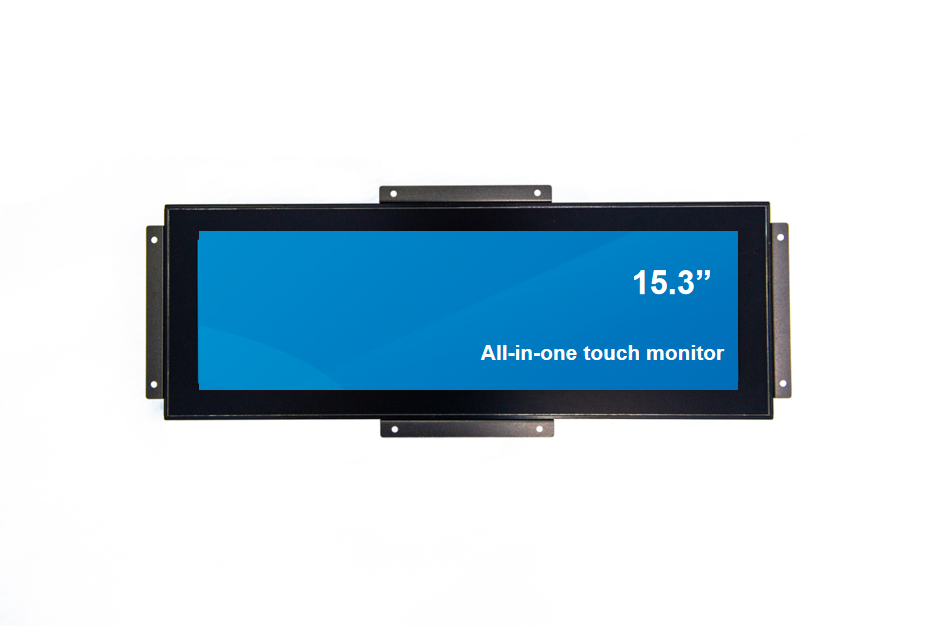

15.3 inch bar type monitor

Features

  • LVDS Interface with 2-pixel / clock
  • High-speed response
  • 6-bit (Hi-FRC) color depth, display 16. 7M colors
  • Incorporated edge type back-light (LED)
  • NTSC 72%
  • High luminance and contrast ratio, low reflection, and wide viewing angle
  • DE (Data Enable) only
  • RoHS/Halogen Free
  • E/S 7.0 compliant
  • Gamma Correction

Technology-Optical bonding

15.3-inch bar type monitor adapted Optical bonding technology ,which is a technology that injects special glue in the display glass or touch screen and TFT liquid crystal (TFT) panel and coated with a layer of resin (OCR) or film (OCA), bonding into a solid laminate without gaps or bubbles. When selecting screens for any project, you should evaluate the environmental and operational conditions that screens will have to endure. Industrial-grade screen and panel PCs are rugged with all types of features and can withstand any type of application. One property that can be considered as optical bonding.

Golden Margins touch display with AG coating that Can effectively prevent glare. Equipped with a dual HDMI interface  DVI interface and VGA interface, it is very convenient for users to choose from. The 2K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together makes the picture a more realistic reality.

Our strength

  • Affordable, cost-effective touchscreen
  • Resistive Touch (pressure sensitive)
  • For OEM Factory touch installations
  • Replace broken touchscreen glass
  • Windows 7, Vista, XP, etc, Linux
  • Activated on touch by almost anything – finger, fingernail, gloved hand, or stylus.
  • The touch screen and mouse can be used at the same time.
  • Left-right mouse-button swap functions are available through the utility program.
  • Eliminates electrostatic and reduces radiation generated from the monitor.
  • Excellent scratch and chemical resistance. Clean with household cleaner, like Windex.
  • No external power supply.
  • Use in any country with a voltage from 100 to 240.

Golden Margins –Entire Range of Touchscreen Products

This image has an empty alt attribute; its file name is Optical-Bonding-1_jpg-1024x641.jpg
Optical Bonding Technology
Interactive flat Panels

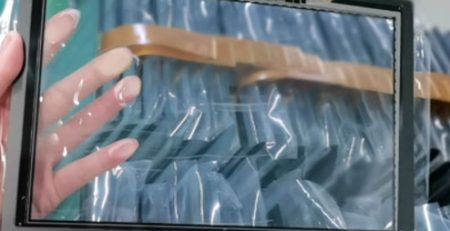

Golden Margins Capacitive Touch Panel PCs

We hope you found these touchscreen or panel PC fundamentals informative. Goldenmargins offers a broad selection of Industrial Touchscreen Monitors and Touch Panel PCs in various sizes and configurations, including medical touch screens, sunlight-readable touch screens, open-frame touch screens, and waterproof touch panels, as well as other unique touch screen or panel PC designs. You can learn more about our services HERE or by calling us at +86 755 23191996 or sales@goldenmargins.com
