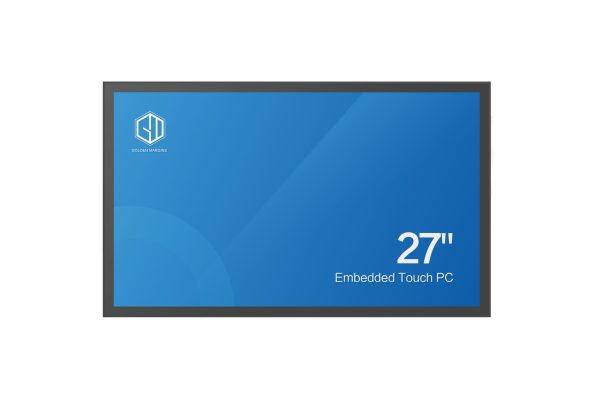

27 inch Anti-glare Coating Capacitive Touchscreen Computer for Android
- Rk3288 Cortex-A17
- 2GB DDR3
- Pre-installed Android 5.1 operating system
- Anti-glare surface treatment (chemical etching)
- 10-Finger-Multi Touch Capacitive Touch Panel
- 3mm cover glass with 6H surface hardness
- Optically bonded Touch Panel to LCD Panel
- Patented IP65 front with silicon seal
- Integrated W-LAN module
- Personalized And Customized
Enquiry about 27 inch Anti-glare Coating Capacitive Touchscreen Computer for Android
- Description
- download
- Packing & Shipping
Description

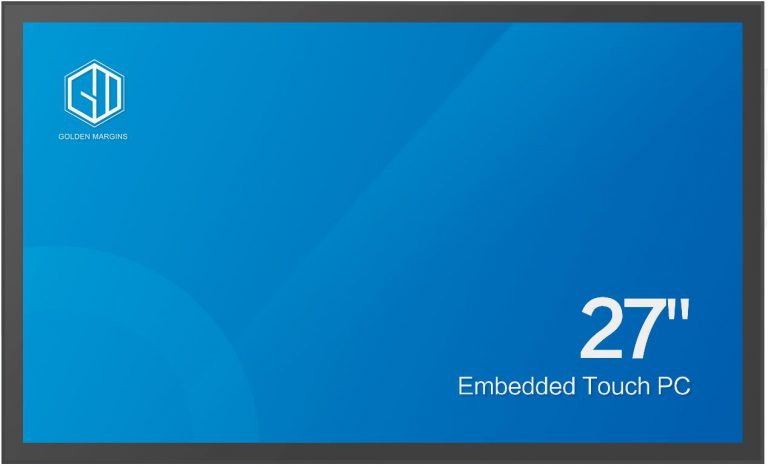

Embedded Touch PC
All series of GM Android all-in-one machines are equipped with RK3288 processor, metal body design, steady and durable, and customized interfaces to meet customer needs. The whole system adopts a laminated process to increase the viewing angle of the product and also prevent dust and humidity. The cover glasses are etched with AG surface treatment to prevent glare。
Optical Bonding
Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent.
PC System
| CPU | Rk3288 |
| Chipset | Cortex-A17 |
| Memory | 2GB DDR3 |
| Storage | eMMC 8GB |
| Network | 10/100/1000M Base-T Gigabit Ethernet |
| OS | Android 5.1 |
| Wi-Fi | 2.4G Wi-Fi (WLAN 802.11b/g/n) |
| Display interface | Single and double LVDS interface；EDP |
| Bluetooth | 4.1 |
| battery | 3V battery (CR2032) |
Display Characteristics
| Design | Open Frame |
| Diagonal | 27″, 68.6cm |
| Panel | LCD, Anti-glare coating |
| Native resolution | 1920(H) ×1080(V) (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 250 cd/m |
| LED Life Time | 30,000 Hour |
| Contrast Ratio (Center of screen) | 3000:1 |
| Viewable area W x H | 599.6(W)x388.1 (H) |
| Response Time | 18ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Support Color | 16.7M colors |
Touch
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch accuracy | ±2mm |
| Surface Treatment | Anti-glare (chemical etching) |
| Touch interface | USB |
| Supported operating systems | win7 、win10、 Linux 、android |
| Through-Glass | 3mm |
| Touch scheme | EETI |
Mechanical
| Fanless design | yes |
| MTBF | 30,000 Hour |
| Cable management system | yes |
| Operation temperature | 0°C – 50°C |
| AngeStorage temperature range | – 20°C – 60°C |
Power Management
| Power supply unit | External |
| Power supply | DC 12V |
| Output power | 36W |
| Rated output current | 3A |
Installation Method
| VESA | 100mm*100mm Mounted at side |
External Connectors
| DC-In | ×1 |
| HDMI | ×1 |
| USB | ×2 |
| Headphone and microphone combo 3.5mm | x1 |
| Sim card | x1 |
| TF card | x1 |
| Wi-Fi | 2.4G Wi-Fi (WLAN 802.11b/g/n) |
| Com | ×2 |
Internal Connectors
| DC IN | ×1 |
| USB | ×4 |
| Serial | ×1 |
| Speaker | ×1 |
| IR&LED | ×1 |
| Power Keyer | ×1 |
| DEBG | ×1 |
| LDVS | ×1 |
| UART TTL | ×1 |
| KEY | ×1 |
| 12C Control | ×1 |
| GPIO | ×1 |
| BL Control | ×1 |
| EDP | ×1 |
| SPK | ×1 |
| MIC | ×1 |
| PCI_E | ×1 |
Dimensions / Weight
| Product dimensions W x H x D | 634 x 386 x 45mm |
| Box dimensions W x H x D | 754 x 486 x 85mm |
| Weight (without box) | 9.6kg |
| Weight (with box) | 13kg |
| Product country origin | China |
