Industrial All-in-one Embedded PC Box Full aluminum case fanless cooling PC 6 RS232 COM i3 i5 i7 industrial mini pc support 4K display

Description

Industrial All-in-one Embedded PC Box Full aluminum case fanless cooling PC 6 RS232 COM i3 i5 i7 industrial mini pc support 4K display

Side view

Embedded PC Box Interface

Number of PCI, PCI-E slots

PRODUCT FEATURES

• Alder Lake 12th Gen InteCore i9/i7/i5/i3/Pentium/Celeron LGA1700 processor Intel 7 process, compared to the standard 7nm process description method
  Note: the max power consumption supports 125W.
• Support DDR4 2400/2666/2933/3200MHz U-DIMM memory ×2， max 64GB.

FRONT PANEL

• Provide switches, indicator lights, and USB2.0 ports ×2 (one of which is a dongle-specific USB port)
• Lockable, and provides easy-to-identify color on and off-state markings to prevent omissions
• Detachable dust-proof net, convenient for users to maintain

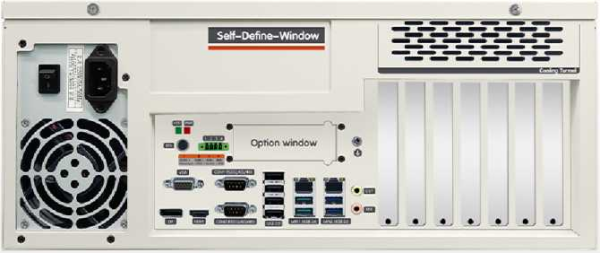

REAR PANEL

• Support VGA+HDMI+DP display interface，LAN ×2，Intel i219V、i210，COM RS232/422/485 ×2（default），4 xCOM（extensible）
• USB3.2 ×4 （default），USB2.0 ×4 ，USB2.0 ×2（extensible），PS/2 （optional），LPT ×1 （optional）
• 4pin locking type custom terminals are reserved on the panel, and the default Remote SW and Power Led
• Support rear panel Self-Define-Window and before delivery preset area OptionWindow. Add interface resources according to user needs.
• PCIE 16X slot、PCIE 1óX slot（4X Signal）．1×PCIE 4X slot（1×Signal）４× PCI slot

Specification

Optional CPU List

Extensible Panel

options window is an extensible panel， can choose：

1. COM x4,COM3/4/5/6, support RS232
2. USB2.0 x2
3. COM x4,COM3/4/5/6, support RS232，USB2.0 x2

Front Panel Introduce

• The front door has a built-in removable dust-proof cotton to isolate external dust and is easy for users to disassemble and clean.
• The front door can be locked to prevent random opening. Built-in side plug watchdog USB2.0 socket, power switch, and one USB2.0 interface.
• The conductive foam makes the IO interface shell fully in contact with the conductive front panel, and quickly releases the harmful impact of high-voltage contact and static electricity systematically to ensure safe and reliable operation of the equipment.

Definition of Terminal

1. Power light+
2. Power light-
3. Switch+
4. Switch-

Pure Copper CPU Fan

• The thermal conductivity of copper is twice that of aluminum. Our company uses pure copper fans. Compared with the aluminum fans commonly used in the industry, it greatly enhances the heat dissipation effect and reduces the temperature of the CPU and CPU peripheral devices, thereby prolonging the service life of the equipment;
• Industrial applications usually require machines to run uninterruptedly for a long time, which leads to the short life of the fan, which has become a pain point in the industry. Our company adopts high-quality double-ball fan bearings, which greatly improves the life of the fan compared with the double-ball bearings commonly used in the industry, especially the oil-impregnated bearings;
