IP65 Waterproof High Brightness 55 Inch Touchscreen TFT LCD Screen Monitor Display
Key Specifications and Features
– Panel: LCD, Anti-glare coating
– Resolution: 1920(H) ×1080(V)
– Aspect ratio: 16:9
– Contrast Ratio: 3000:1
– Response Time: 12ms
– Support Color: 16.7M colors
– Touchpoints: 10
– Analog signal input: VGA x1
– Digital signal input: HDMI x 1
– Power supply: AC 120V-240V 60Hz
– Output power: 200W
Enquiry about IP65 Waterproof High Brightness 55 Inch Touchscreen TFT LCD Screen Monitor Display
- Description
- DOWNLOADS
- Packing & Shipping
Description

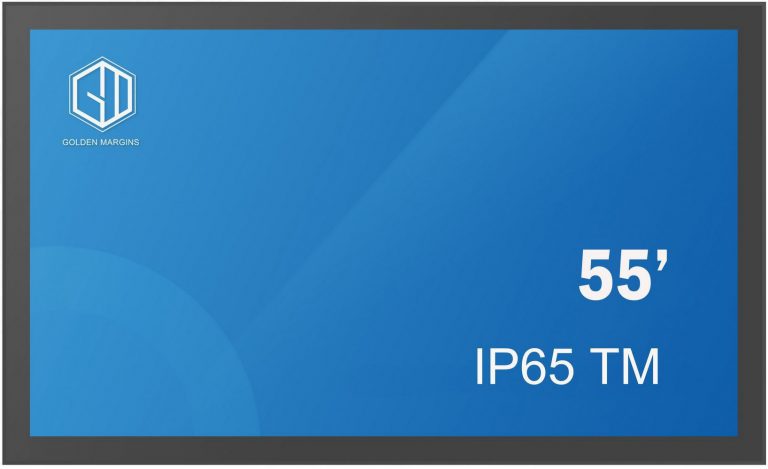

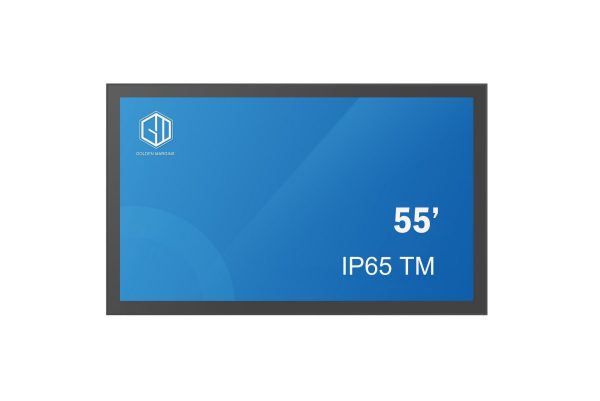

IP65 High Brightness 55 Inch Fanless Touchscreen display
with AG Touch display and bonding
Fanless Touchscreen display
55 Inch Fanless Touchscreen displays high brightness with AG coating that effectively reduces glare. It comes with an HDMI interface and a VGA interface, making it very convenient for users to choose from. In addition, the 2K high-definition monitor screen can display delicate picture quality. Furthermore, optical bonding between the touch screen and LCD modules makes the image more realistic.
Optical Bonding Technology
Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, and increase the light transmittance, also the display effect is more clear and transparent. Learn More >
Display Characteristics
| Diagonal | 55″, 139cm |
| Panel | LCD, Anti-glare coating |
| Native resolution | 1920(H) ×1080(V) |
| Aspect ratio | 16:09 |
| Brightness | 350 cd/m |
| LED Life Time | 30,000 Hours |
| Contrast Ratio (Center of screen) | 3000:1 |
| Viewable area W x H | 1212(W)x 682.4(H) |
| Response Time | 12ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Support Color | 16.7M colors |
Touch
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch accuracy | ±2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | win7 、win10、 Linux 、android |
| Through-Glass | 3mm |
| Touch scheme | EETI |

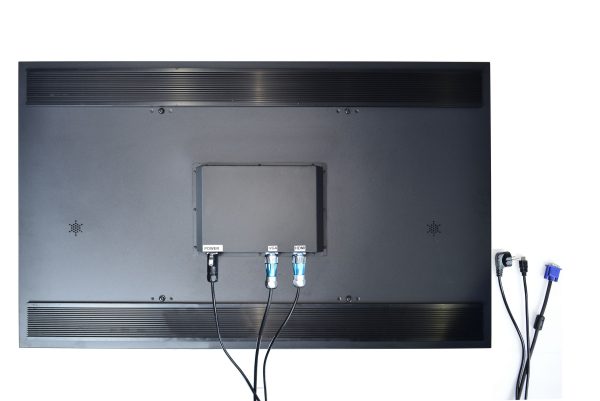

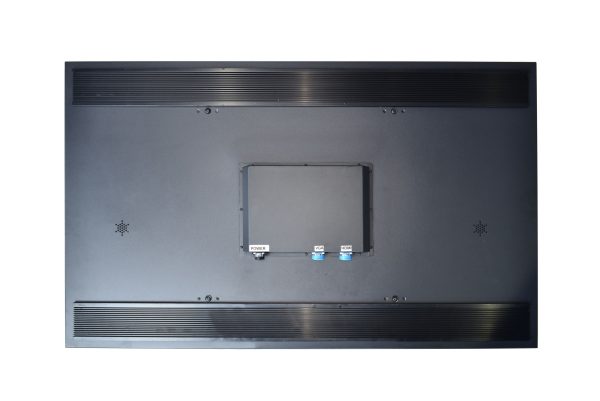

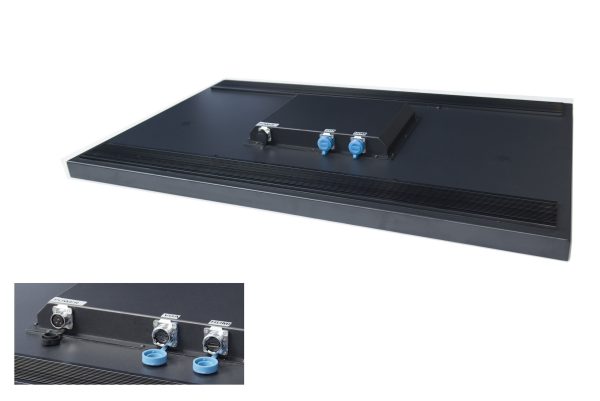

Interfaces / Connectors / Controls
| Analog signal input | VGA x1 (Optional) |
| Digital signal input | HDMI x 1 |
Features
| Extra | Anti-glare glass |
| embeded mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 3mm |
| Glass hardness | 6H |
| Ball drop test | yes |
| Impact testing | IK-7 |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| Water tight seal | yes(front) |
General
| OSD languages | EN CN |
| Control buttons | Power on startup |
Mechanical
| Orientation | Landscape, Portrait |
| Fanless design | yes |
| MTBF | 30,000 Hours |
| Cable management system | yes |
| Operation temperature | 0°C – 70°C |
| AngeStorage temperature range | -20°C – 70°C |
Accessories Included
| Cables | power, USB |
| Other | Touch Panel Driver |
| Cable cover | yes |
Power Management
| Power supply unit | Internal Power Supply Board |
| Power supply | AC 120V-240V 60Hz |
| Output power | 200W |
| Rated output current | 8A |
Installation Method
| VESA | 100mm*200mm Mounted at Side |

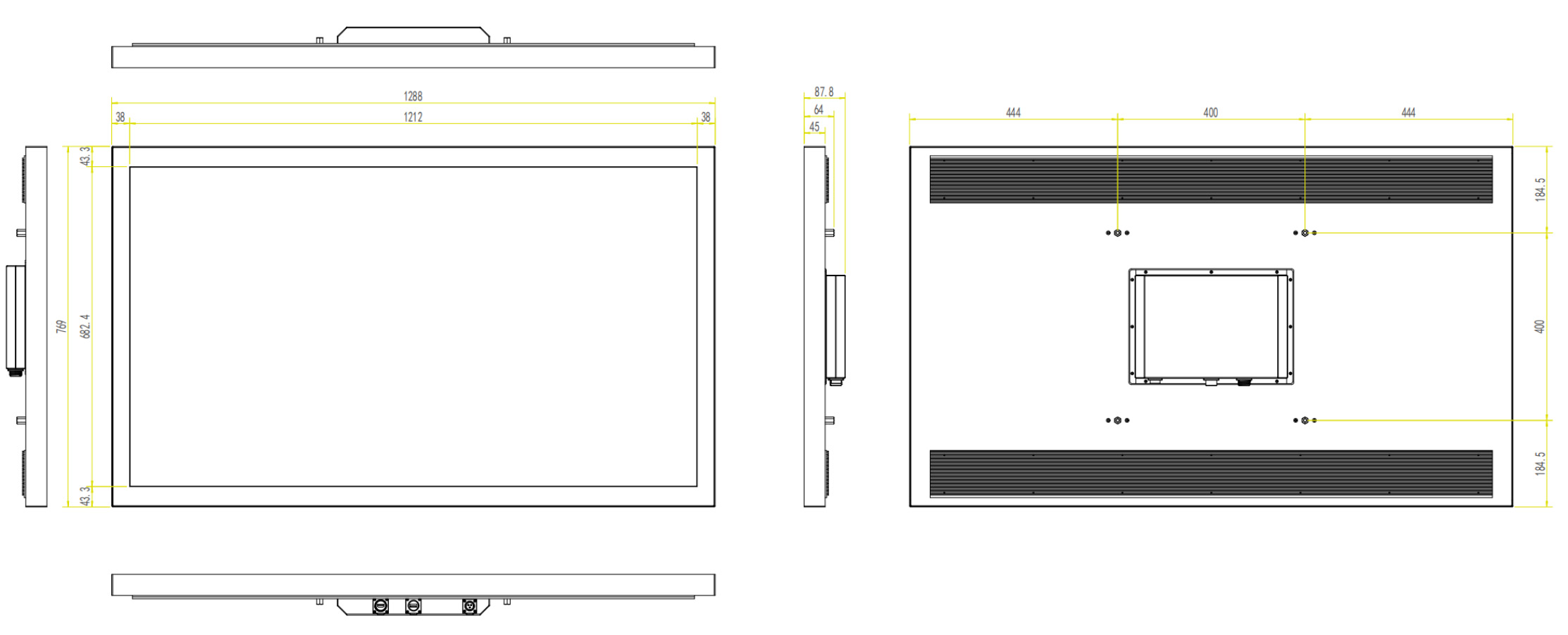

Dimensions / Weight
| Product dimensions W x H x D | 1288 x 769 x 87.8mm |
| Box dimensions W x H x D | 1400 x 900 x 110mm |
| Weight (without box) | 35kg |
| Weight (with box) | 45kg |
| Product country origin | China |
