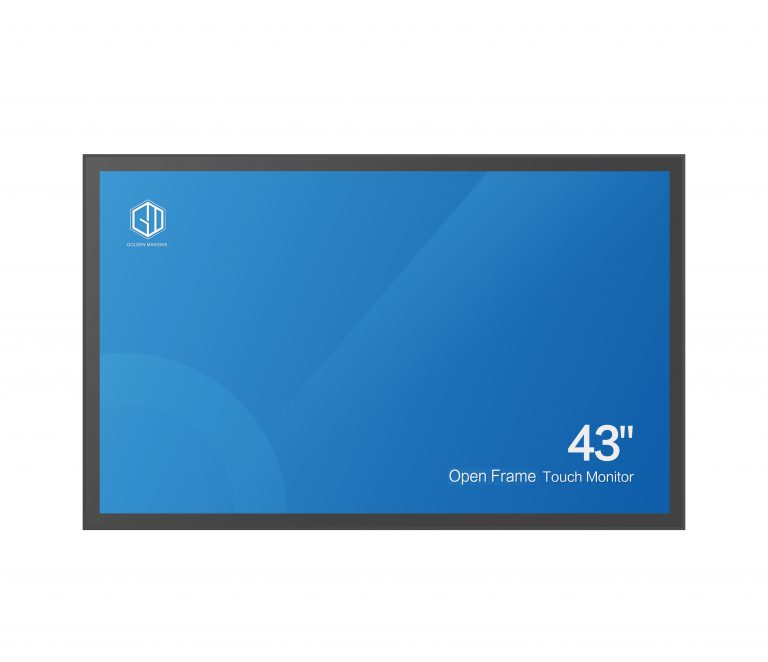

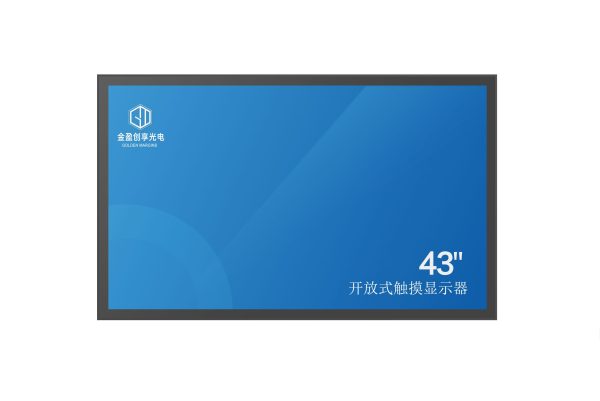

Full Lamination Open Frame IP65 43Inch TFT LCD TouchScreen Monitor Display

Full Lamination Open Frame IP65 43Inch TFT LCD TouchScreen Monitor Display

43-inch  touch display with AG coating that Can effectively prevent glare. Equipped with dual HDMI interface  DVI interface and VGA interface, it is very convenient for users to choose. The 2K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together make the picture more realistic reality

Description

Open Frame 10 Point Touch Screen With AG Touch Display And Bonding

LCD monitors
LCD monitors

LCD monitors

43-inch LCD monitors with AG coating that Can effectively prevent glare. Equipped with a dual HDMI interface  DVI interface and VGA interface, it is very convenient for users to choose. The 2K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together makes the picture a more realistic reality。

Optical Bonding

Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, and increase the light transmittance, also the display effect is more clear and transparent.

Display Characteristics

Diagonal 43″, 108cm
Panel LCD, Anti-glare coating
Native resolution 1920(H) ×1080(V) (2.1 megapixels Full HD)
Aspect ratio 16:09
Brightness 350 cd/m
LED Life Time 30,000 Hour
Contrast Ratio (Center of the screen) 3000:1
Viewable area W x H 942(W)x 530.5(H)
Response Time 12ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color 16.7M colors

Touch

Touch technology projective capacitive
Touchpoints 10
Touch accuracy ±2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems win7 、win10、 Linux 、android
Through-Glass 3mm
Touch scheme EETI

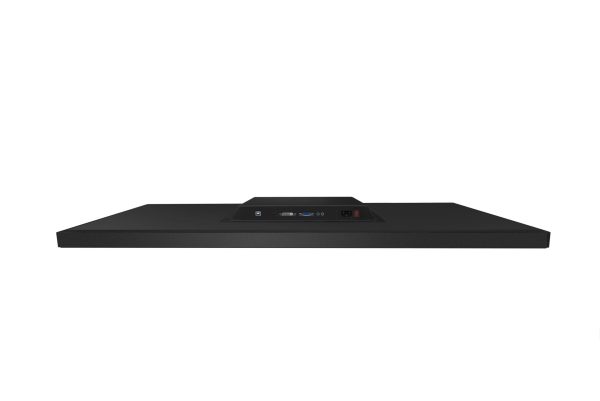

Interfaces / Connectors / Controls

Analog signal input VGA x1
Digital signal input HDMI x 1 DVIx1

Features

Extra Anti-glare glass
embedded mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 6H
Ball drop test yes
Impact testing IK-7
Water and dust protection IP65 (front)
Housing (bezel) metal
Watertight seal yes(front)

General

OSD languages EN CN
Control buttons Power on startup

Mechanical

Extra Anti-glare glass
embedded mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 6H
Ball drop test yes
Impact testing IK-7
Water and dust protection IP65 (front)
Housing (bezel) metal
Watertight seal yes(front)

Accessories Included

Cables power, USB
Other Touch Panel Driver
Cable cover yes

Power Management

Power supply unit External
Power supply AC 120V-240V 60Hz
Output power 65W
Rated output current 4A

Installation Method

VESA 400mm*400mm

Dimensions / Weight


Product dimensions W x H x D 990 x 589.4 x 66mm
Box dimensions W x H x D 990 x 589.4 x 66mm
Weight (without box) 22kg
Weight (with box) 26kg
Product country origin China

43OPTM Flyer

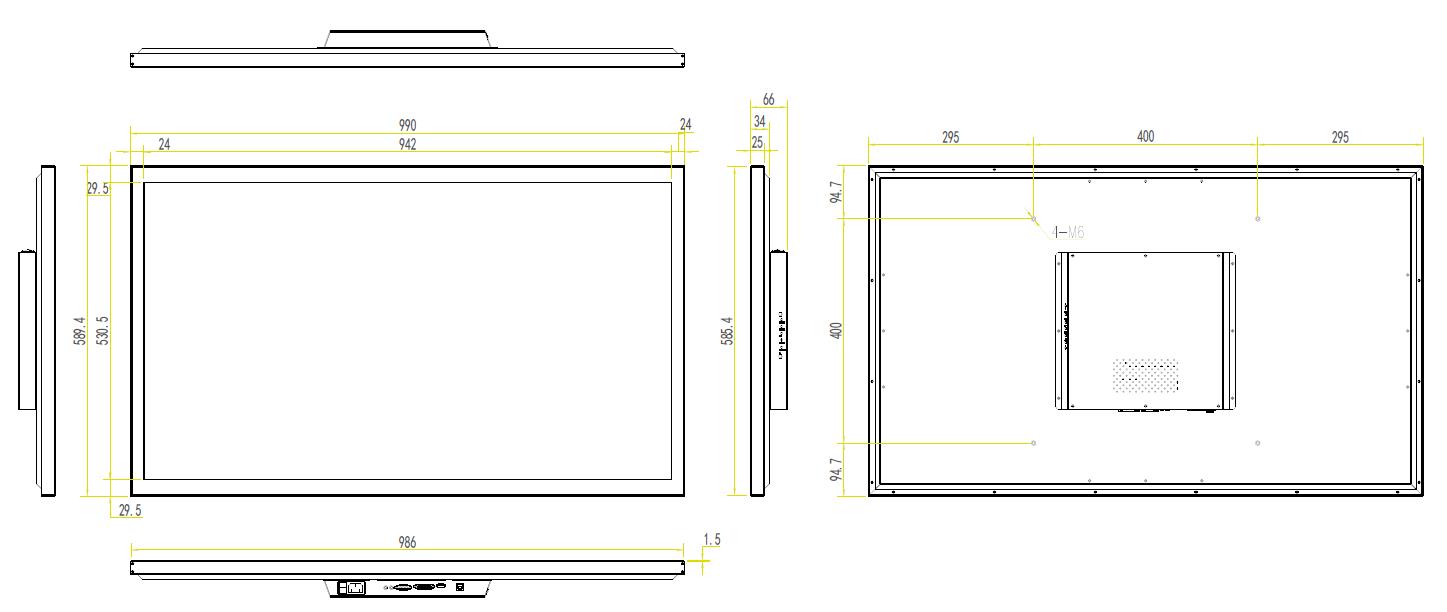

43 OPTM drawing
