High Brightness 43 inch Touchscreen TFT LCD Touch Screen Monitor Display

Key Specifications and Features

– Panel: LCD, Anti-glare coating
– Resolution: 1920(H) ×1080(V)
– Aspect ratio: 16:9
– Contrast Ratio: 3000:1
– Response Time: 12ms
– Support Color: 16.7M colors
– Touchpoints: 10
– Analog signal input: VGA x1
– Digital signal input: HDMI x 1
– Power supply: AC 120V-240V 60Hz
– Consume power: 200W


IP65 High Brightness 43″ Touchscreen Monitor
with AG Touch display and bonding

IP65 Monitor
IP65 Monitor

43-inch IP65 High Brightness Monitor with AG coating that effectively reduces glare. It comes with an HDMI interface and a VGA interface, making it very convenient for users to choose from. In addition, the 2K high-definition monitor screen can display delicate picture quality. Furthermore, optical bonding between the touch screen and LCD modules makes the image more realistic.

Optical Bonding Technology

Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent. Learn More >

Display Characteristics

Diagonal 43″, 108cm
Panel LCD, Anti-glare coating
Native resolution 1920(H) ×1080(V)
Aspect ratio 16:09
Brightness 350 cd/m
LED Life Time 30,000 Hours
Contrast Ratio (Center of screen) 3000:1
Viewable area W x H 943(W)x 531(H)
Response Time 12ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color 16.7M colors


Touch technology projective capacitive
Touch points 10
Touch accuracy ±2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems win7 、win10、 Linux 、android
Through-Glass 3mm
Touch scheme EETI

Interfaces / Connectors / Controls

Analog signal input VGA x1 (Optional)
Digital signal input HDMI x 1


Extra Anti-glare glass
embeded mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 6H
Ball drop test yes
Impact testing IK-7
Water and dust protection IP65 (front)
Housing (bezel) metal
Water tight seal yes(front)


OSD languages EN CN
Control buttons Power on startup


Orientation Landscape, Portrait
Fanless design yes
MTBF 30,000 Hours
Cable management system yes
Operation temperature 0°C – 70°C
AngeStorage temperature range -20°C – 70°C

Accessories Included

Cables power, USB
Other Touch Panel Driver
Cable cover yes

Power Management

Power supply unit Internal Power Supply Board
Power supply AC 120V-240V 60Hz
Output power 200W
Rated output current 8A

Installation Method

VESA 100mm*200mm Mounted at Side

Dimensions / Weight

Product dimensions W x H x D 1025 x 618 x 82.3mm
Box dimensions W x H x D 1200 x 700 x 93mm
Weight (without box) 27kg
Weight (with box) 35kg
Product country origin China

Title Description Version Size Hits Date added Date modified Download

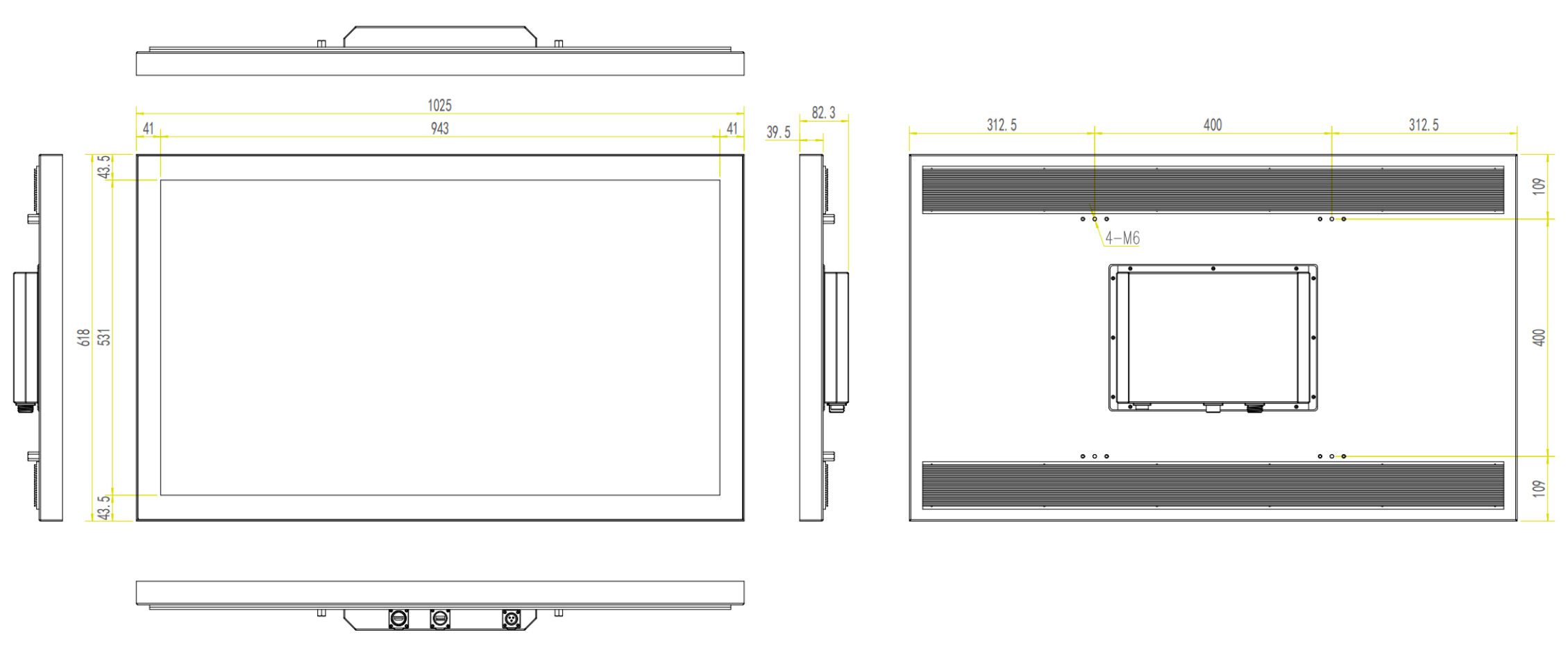

43-Inch IP65 High Brightness Touchscreen Monitor drawing 114.27 KB 342 28-08-2021 28-08-2021 DownloadPreview
43-Inch IP65 High Brightness Touchscreen Monitor Flyer_ZH 7.79 MB 222 28-08-2021 28-08-2021 DownloadPreview
43-Inch IP65 High Brightness Touchscreen Monitor Flyer_EN 220.39 KB 234 28-08-2021 28-08-2021 DownloadPreview

Packing & Shipping
