Anti-glare Coating 49.5 inch Ultra-wide Stretched Bar Type LCD Touchscreen Display

Anti-glare Coating 49.5 inch Ultra-wide Stretched Bar Type LCD Touchscreen Display

Key Specifications and Features

– Panel: LCD, Anti-glare coating
– Resolution: 1920(H) ×540(V)
– Aspect ratio: 32:9
– Brightness: 500 cd/m – 1500 cd/m (Customization)
– Contrast Ratio: 3000:1
– Response Time: 18ms
– Support Color: 16.7M colors
– Touchpoints: 10
– Analog signal input: none

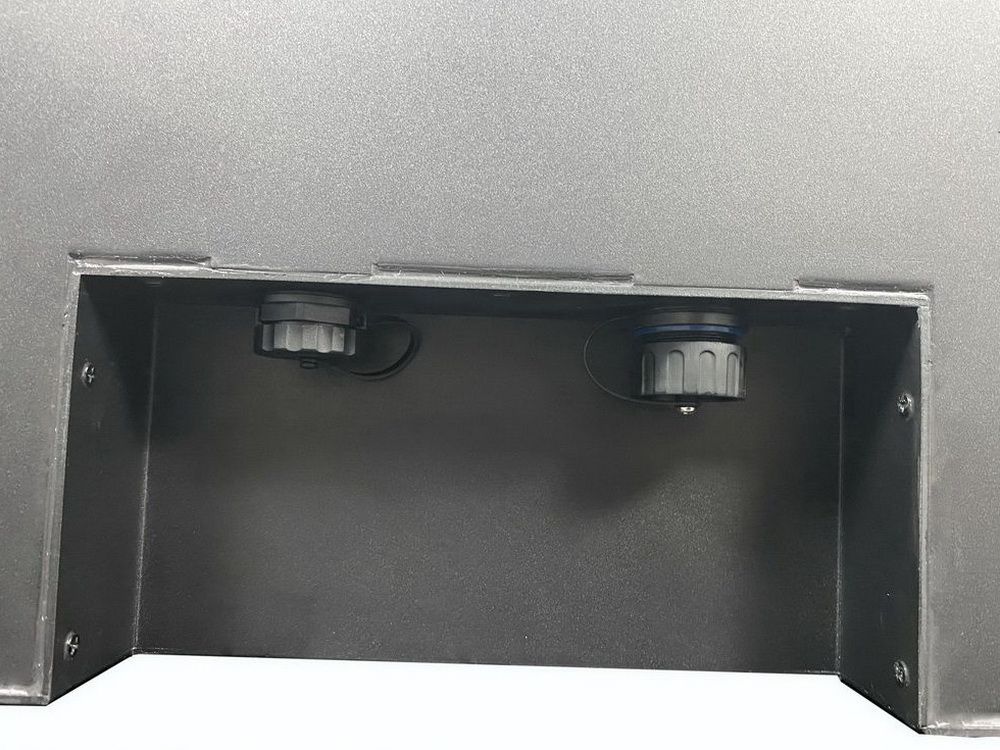

– Digital signal input: HDMI x 1 Waterproof Interface
– Power supply: DC 12V
– Output power: 36W

Description

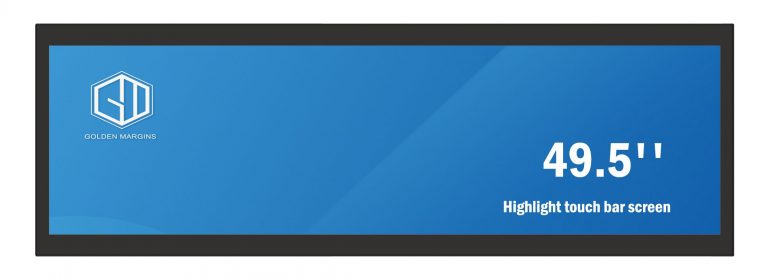

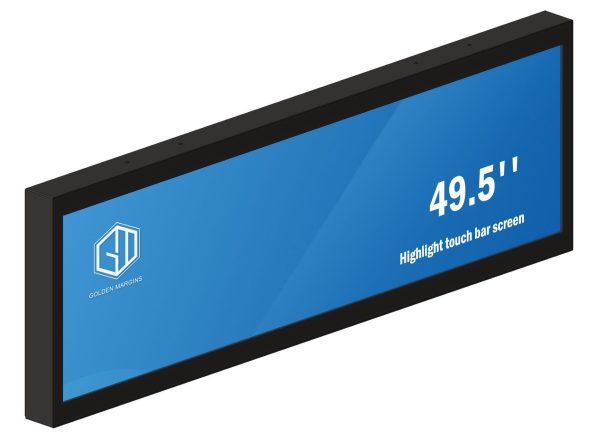

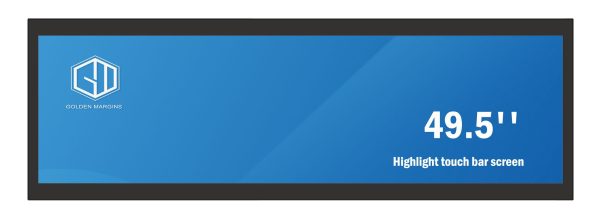

49.5″ Ultra-wide Streched Bar Type LCD Panel Touchscreen


The 49.5-inch Ultra-Wide Stretched Bar Type LCD Panel Touchscreen design has an AG coating that effectively reduces glare. It is equipped with an HDMI waterproof interface. In addition, the 2K high-definition monitor screen can display delicate picture quality. Furthermore, optical bonding between the touch screen and LCD modules makes the image more realistic.

Optical Bonding Technology

Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent. Learn More >

Display Characteristics

Diagonal 49.5″
Panel LCD, Anti-glare coating
Native resolution 1920(H) ×540(V)
Aspect ratio 32:9
Brightness 500 cd/m – 1500 cd/m (Customization)
LED Life Time 30,000 Hours
Contrast Ratio (Center of the screen) 3000:1
Viewable area W x H 1209.6(W)x 340.2(H)
Response Time 18ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color 16.7M colors

Touch

Touch technology projective capacitive
Touch points 10
Touch accuracy ±2mm
Touch method finger, glove (latex), capacitive stylus
Touch interface USB
Supported operating systems win7 、win10、 Linux 、android
Through-Glass 3mm
Touch scheme EETI

Interfaces / Connectors / Controls

Analog signal input none
Digital signal input HDMI x 1

Features

Extra Anti-glare glass
embeded mode yes
Max. non-stop operating time 24/7
Glass thickness 3mm
Glass hardness 6H
Ball drop test yes
Impact testing IK-7
IP65 yes
MTBF 50,000 Hours
AngeStorage Temperature Range – 20°C – 60°C
Operation Temperature 0°C – 60°C

Accessories Included

Power Supply x1
USB Touch Line x1
Product Description x1

Power Management

Power supply unit External
Power supply DC 12V
Output power 36W
Rated output current 7A

Installation Method

VESA 75mm*200mm

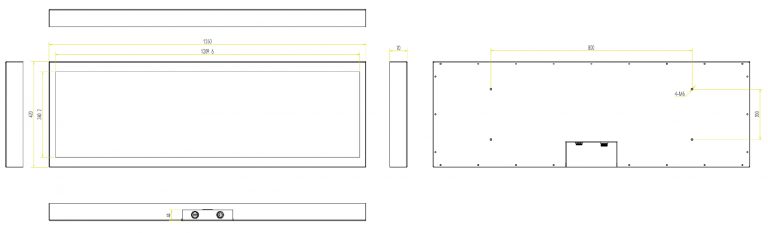

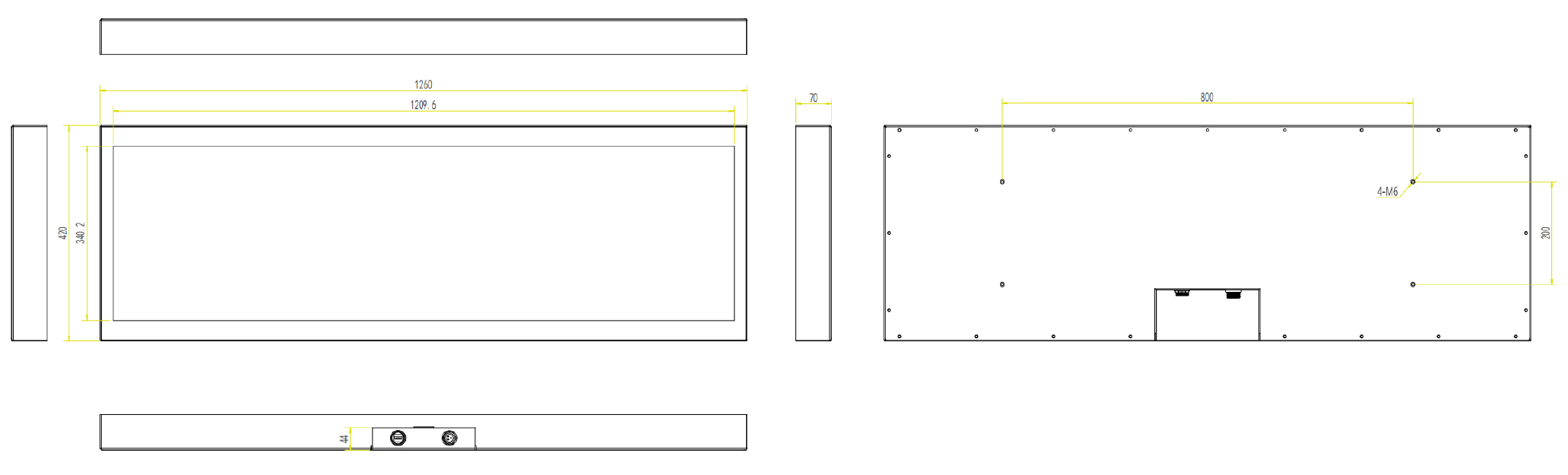

Dimensions / Weight


Product dimensions W x H x D 1260 x 420 x 70mm
Box dimensions W x H x D 2000 x 560 x 90mm
Weight (without box) 10.6kg
Weight (with box) 12kg
Product country origin China
