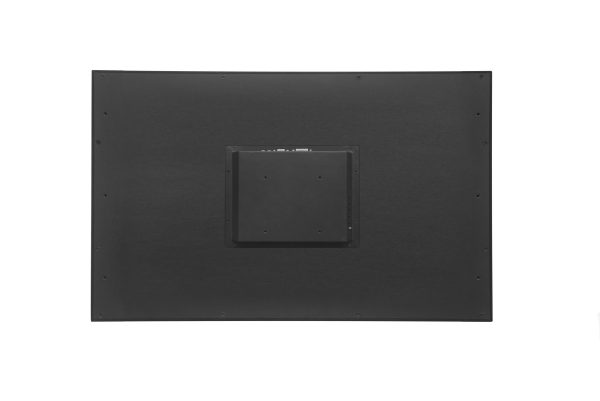

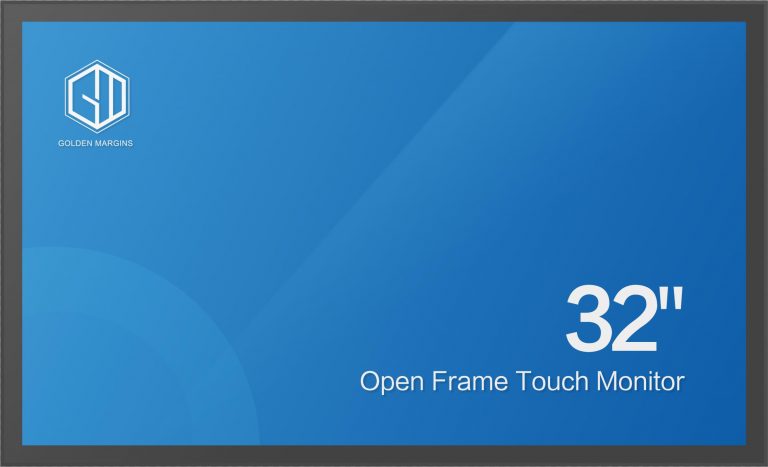

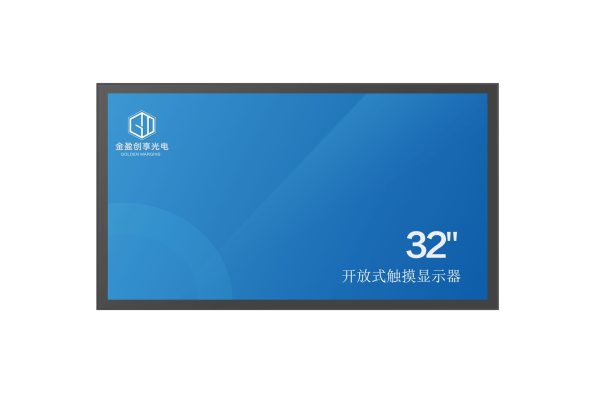

Industrial Open Frame Display 32 inch Capacitive LCD Touch Screen Monitor
32-inch embedded touch display with AG coating that Can effectively prevent glare. Equipped with a dual HDMI interface DVI interface and VGA interface, it is very convenient for users to choose. The 4K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together makes the picture a more realistic reality.
Enquiry about Industrial Open Frame Display 32 inch Capacitive LCD Touch Screen Monitor
- Description
- download
- Packing & Shipping
Description

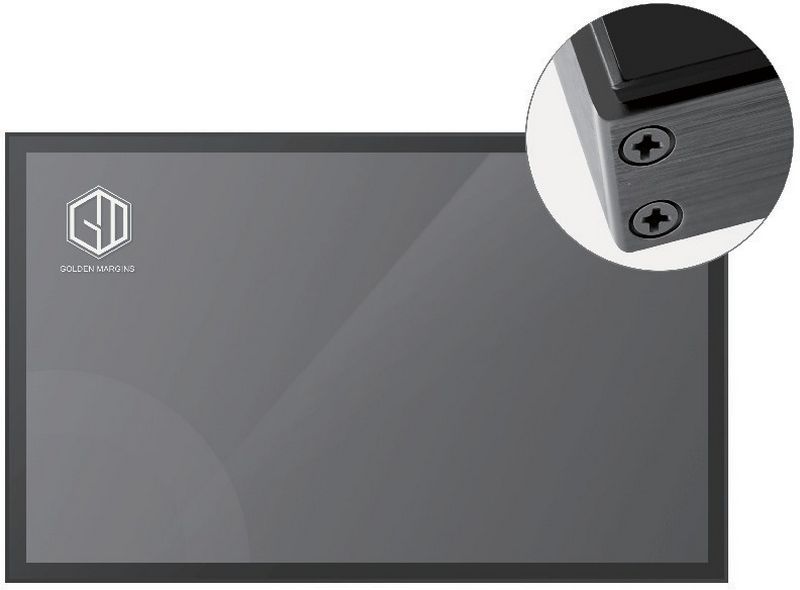

Open Frame 10-point touch screen with AG Touch display and bonding
Capacitive Touch Monitor
32-inch embedded Capacitive Touch Monitor with AG coating that Can effectively prevent glare. Equipped with a dual HDMI interface DVI interface and VGA interface, it is very convenient for users to choose. The 2K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together makes the picture a more realistic reality。

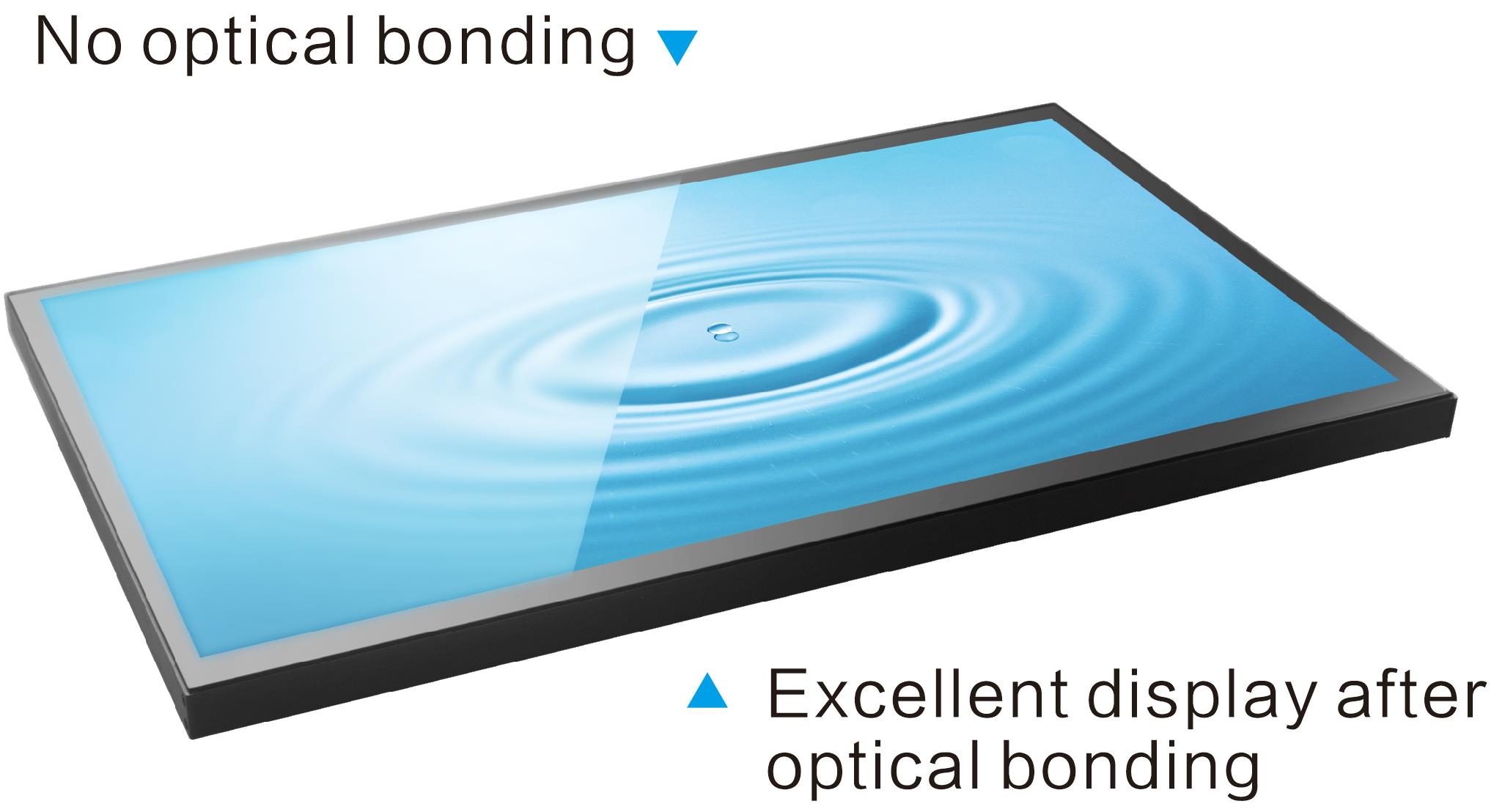

Optical Bonding
Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, and increase the light transmittance, also the display effect is more clear and transparent.
Display Characteristics
| Design | Open Frame |
| Diagonal | 31.5″, 80cm |
| Panel | LCD, Anti-glare coating |
| Native resolution | 3840*2160 |
| Aspect ratio | 16:09 |
| Brightness | 350 cd/m |
| LED Life Time | 30,000 Hour |
| Contrast Ratio (Center of the screen) | 3000：1 |
| Viewable area W x H | 697.4(W)x 391.8(H) |
| Response Time | 12ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Support Color | 16.7M colors |
Touch
| Touch technology | projective capacitive |
| Touchpoints | 10 |
| Touch accuracy | ±2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | win7 、win10、 Linux 、android |
| Through-Glass | 3mm |
| Touch scheme | EETI |

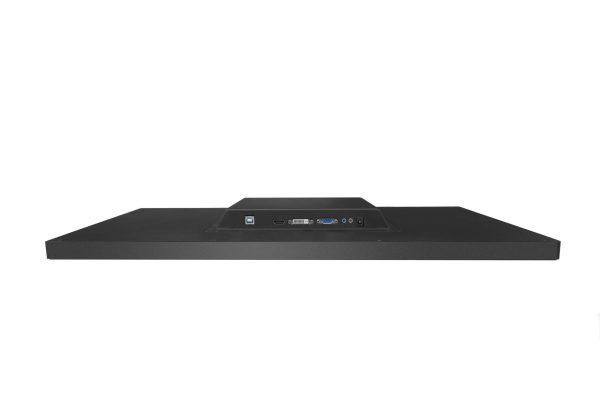

Interfaces / Connectors / Controls
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x 1 DVIx1 |
Features
| Extra | Anti-glare glass |
| embedded mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 3mm |
| Glass hardness | 6H |
| Ball drop test | yes |
| Impact testing | IK-7 |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| Watertight seal | yes(front) |
General
| OSD languages | EN CN |
| Control buttons | Power on startup |
Mechanical
| Extra | Anti-glare glass |
| embedded mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 3mm |
| Glass hardness | 6H |
| Ball drop test | yes |
| Impact testing | IK-7 |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| Watertight seal | yes(front) |
Accessories Included
| Cables | power, USB |
| Other | Touch Panel Driver |
| Cable cover | yes |
Power Management
| Power supply unit | External |
| Power supply | AC 12V, |
| Output power | 60W |
| Rated output current | 5A |
Installation Method
| VESA | 100mm*100mm Mounted at side |

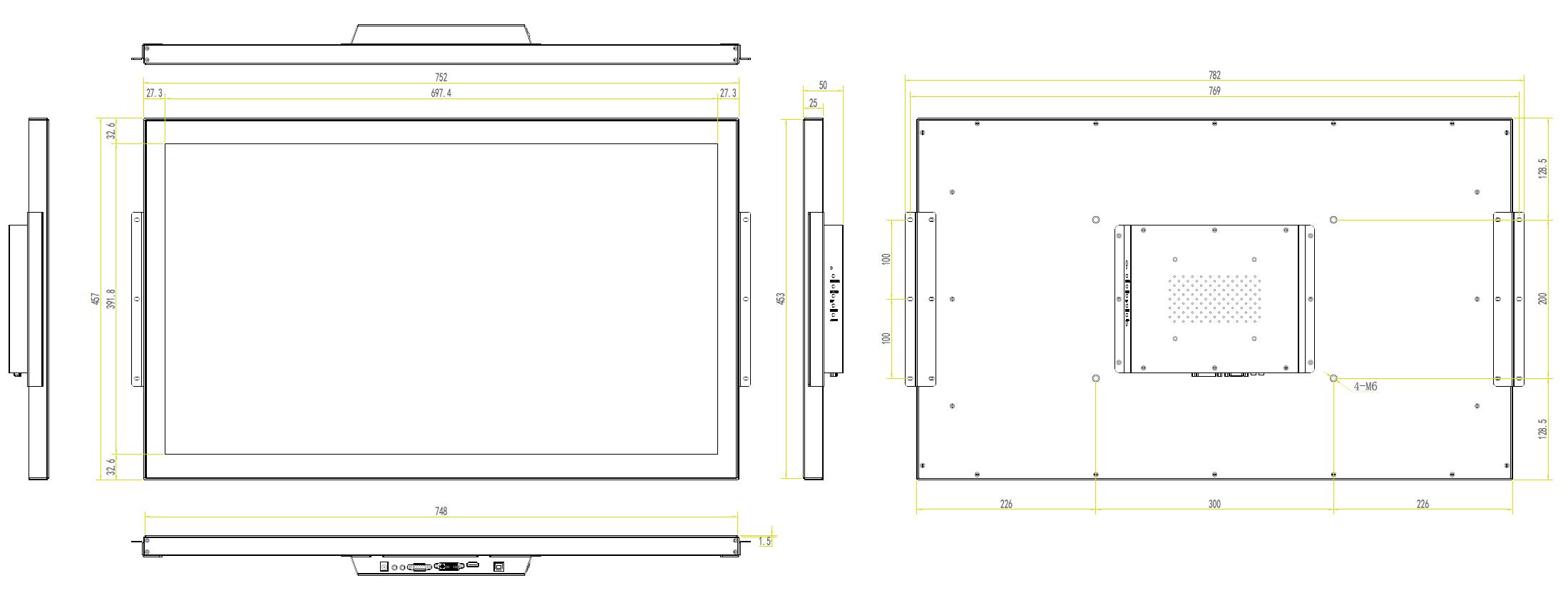

Dimensions / Weight
| Product Dimensions W x H x D | 752 x 457 x 50mm |
| Box dimensions W x H x D | 800 x 520 x 85mm |
| Weight (without box) | 13kkg |
| Weight (with box) | 15kg |
| Product country origin | China |
[wpfd_single_file id=”937″ catid=”59″ name=”32 OP TM Flyer”]
[wpfd_single_file id=”775″ catid=”59″ name=”32 OP TM drawing”]

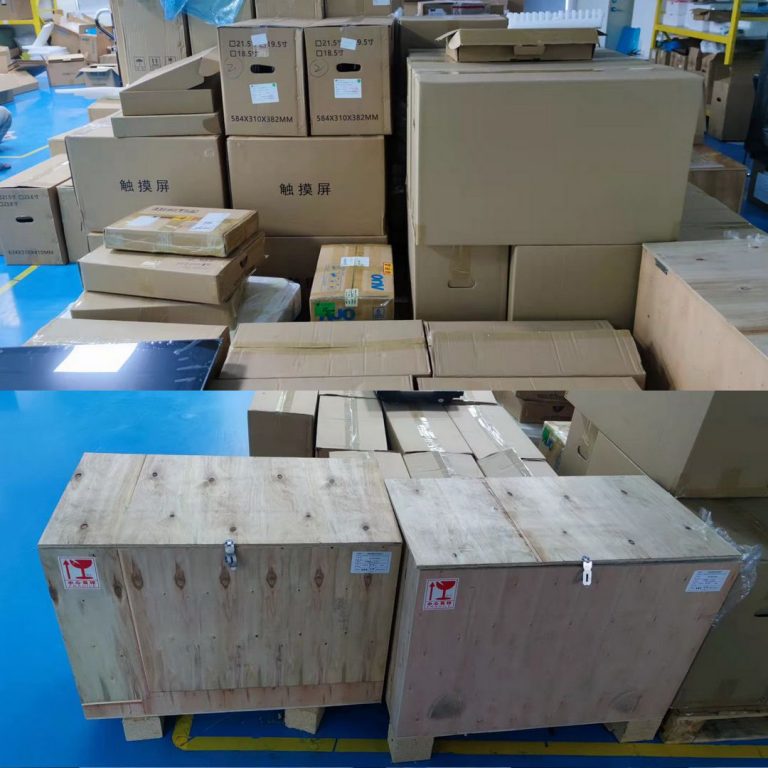

Packing & Shipping
