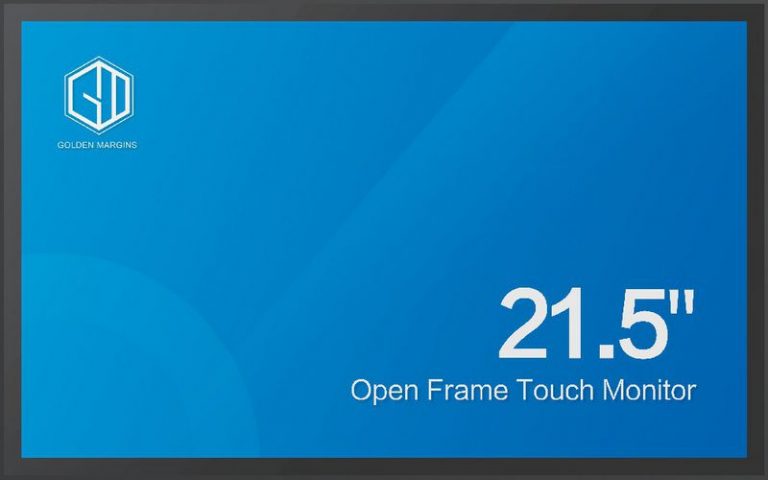

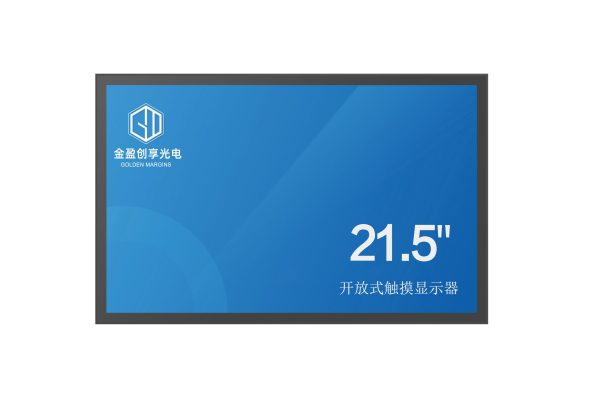

21.5 inch High Resolution 1920*1080 Industrial LCD Screen Open Frame Touch Screen Monitor
21.5-inch embedded touch display with AG coating that Can effectively prevent glare. Equipped with dual HDMI interface DVI interface and VGA interface, it is very convenient for users to choose. The 2K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together make the picture more realistic reality。
Enquiry about 21.5 inch High Resolution 1920*1080 Industrial LCD Screen Open Frame Touch Screen Monitor
- Description
- download
- Packing & Shipping
Description
Open Frame 10 point touch screen with AG Touch display and bonding
21.5-inch embedded touch display with AG coating that Can effectively prevent glare. Equipped with dual HDMI interface DVI interface and VGA interface, it is very convenient for users to choose. The 2K high-definition monitor screen can display delicate Picture quality. Plus optical bonding between the touch screen with LCD modules together make the picture more realistic reality。
Optical Bonding
Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent.
Display Characteristics
| Design | Open Frame |
| Diagonal | 21.5″, 55cm |
| Panel | LCD, Anti-glare coating |
| Native resolution | 1920(H) ×1080(V) (2.1 megapixel Full HD) |
| Aspect ratio | 16:09 |
| Brightness | 250 cd/m |
| LED Life Time | 30,000 Hour |
| Contrast Ratio (Center of screen) | 3000:1 |
| Viewable area W x H | 269.1(W)x477.6 (H) |
| Response Time | 18ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Support Color | 16.7M colors |
Touch
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch accuracy | ±2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | win7 、win10、 Linux 、android |
| Through-Glass | 3mm |
| Touch scheme | EETI |

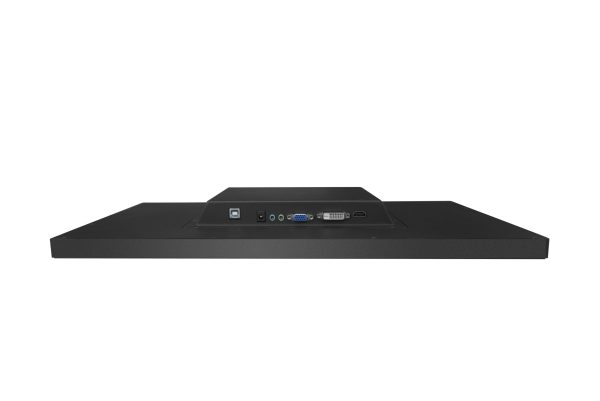

Interfaces / Connectors / Controls
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x 1 DVIx1 |
Features
| Extra | Anti-glare glass |
| embeded mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 3mm |
| Glass hardness | 6H |
| Ball drop test | yes |
| Impact testing | IK-7 |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| Water tight seal | yes(front) |
General
| OSD languages | EN CN |
| Control buttons | Power on startup |
Mechanical
| Extra | Anti-glare glass |
| embeded mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 3mm |
| Glass hardness | 6H |
| Ball drop test | yes |
| Impact testing | IK-7 |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| Water tight seal | yes(front) |
Accessories Included
| Cables | power, USB |
| Other | Touch Panel Driver |
| Cable cover | yes |
Power Management
| Power supply unit | External |
| Power supply | DC 12V |
| Output power | 36W |
| Rated output current | 3A |
Installation Method

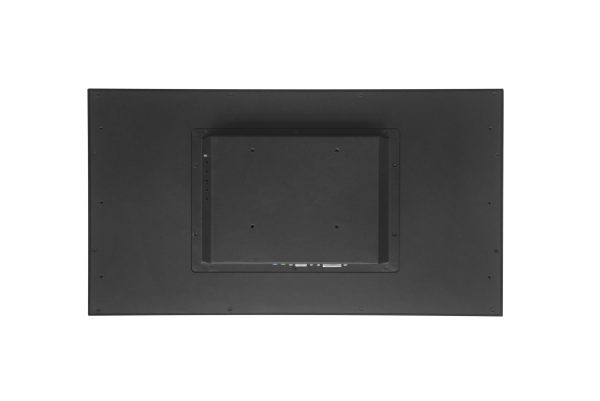

| VESA | 100mm*100mm Mounted at side |
Dimensions / Weight
| Product dimensions W x H x D | 506 x307 x 46.8mm |
| Box dimensions W x H x D | 750×460 x 60mm |
| Weight (without box) | 8.6kkg |
| Weight (with box) | 10kg |
| Product country origin | China |
21.5OP TM Flyer

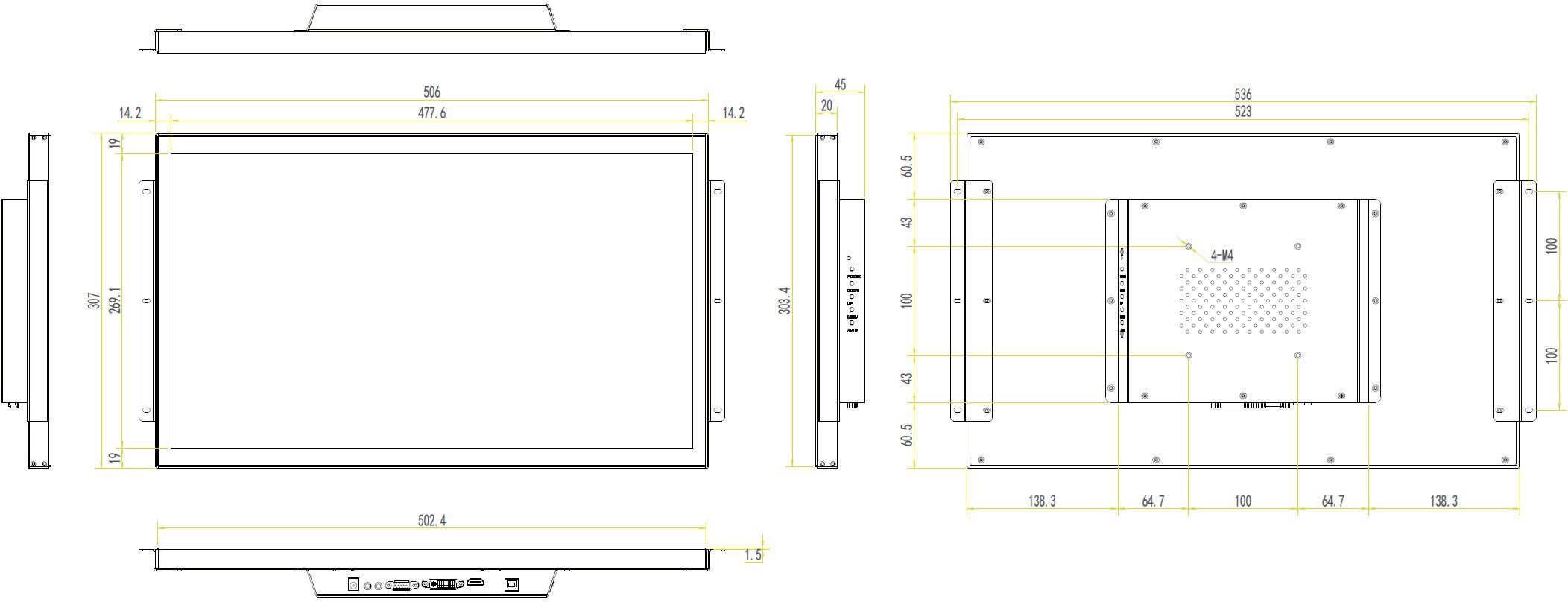

21.5OPTM drawing
