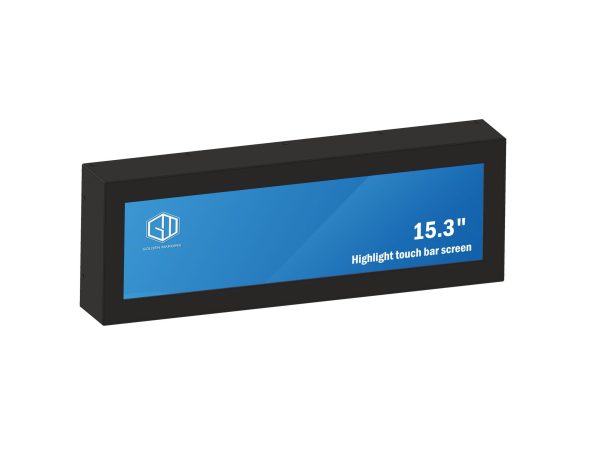

15.3 inch Display Shelf Edge Ultra Wide Stretched Bar Type Lcd Display

Key Specifications and Features

– Panel: LCD, Anti-glare coating
– Resolution: 1280(H) ×342(V)
– Aspect ratio: 640:171
– Brightness: 500 cd/m – 1500 cd/m (Customization)
– Contrast Ratio: 3000:1
– Response Time: 18ms
– Support Color: 16.7M colors
– Touchpoints: 10
– Analog signal input: none

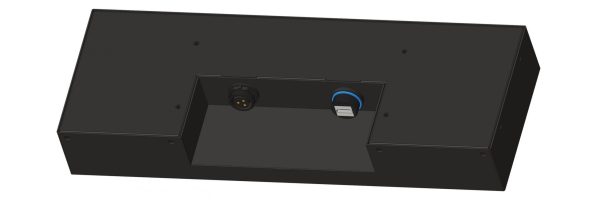

– Digital signal input: HDMI x 1 Waterproof Interface
– Power supply: DC 12V
– Output power: 36W

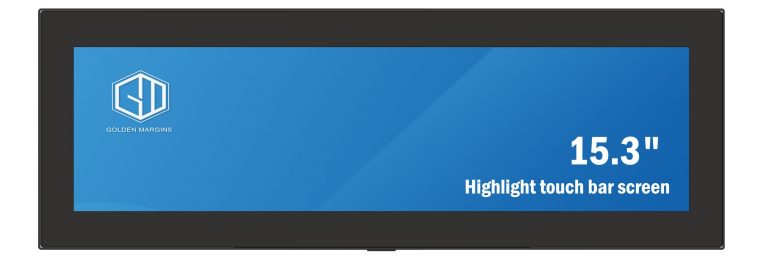

15.3″ Ultra-wide Stretched Bar Type Lcd Display LCD Touchscreen

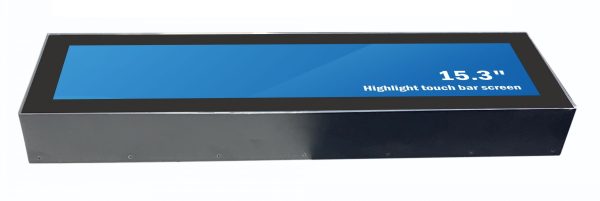

Bar Type Lcd Display

The 15.3-inch Ultra-Wide Stretched Bar Type Lcd Display design has an AG coating that effectively reduces glare. It is equipped with an HDMI waterproof interface. In addition, optical bonding between the touch screen and LCD modules makes the image more realistic and clear.

Bar Type Lcd Display

Optical Bonding Technology

Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent. Learn More >

Display Characteristics

PanelLCD, Anti-glare coating
Native resolution1280(H) ×342(V)
Aspect ratio640:171
Brightness500 cd/m – 1500 cd/m (Customization)
LED Life Time30,000 Hours
Contrast Ratio (Center of the screen)3000:1
Viewable area W x H700(W)x 132.2(H)
Response Time18ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color16.7M colors


Touch technologyprojective capacitive
Touch points10
Touch accuracy±2mm
Touch methodfinger, glove (latex), capacitive stylus
Touch interfaceUSB
Supported operating systemswin7 、win10、 Linux 、android
Touch schemeEETI

Interfaces / Connectors / Controls

Analog signal inputnone
Digital signal inputHDMI x 1


ExtraAnti-glare glass
embeded modeyes
Max. non-stop operating time24/7
Glass thickness3mm
Glass hardness6H
Ball drop testyes
Impact testingIK-7
MTBF50,000 Hours
AngeStorage Temperature Range– 20°C – 60°C
Operation Temperature0°C – 60°C

Accessories Included

Power Supplyx1
USB Touch Linex1
Product Descriptionx1

Power Management

Power supply unitExternal
Power supplyDC 12V
Output power36W
Rated output current7A

Installation Method


Dimensions / Weight

Bar Type Lcd Display

Product dimensions W x H x D418 x 146.8 x 60mm
Box dimensions W x H x D650 x 188 x 70mm
Weight (without box)5.6kg
Weight (with box)7kg
Product country originChina
