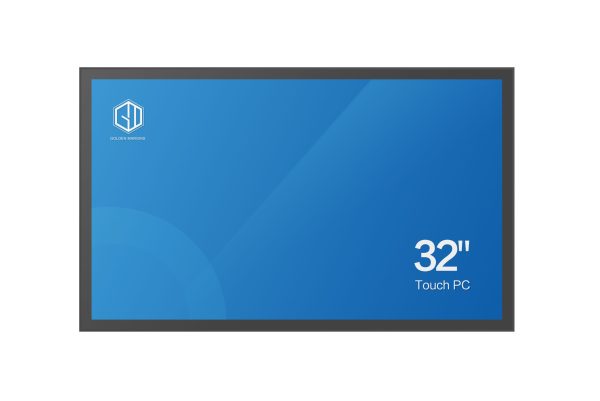

Sunlight Brightness Monitor Waterproof IP65 32 inch Embedded Industrial HMI Screen Touch Panel
- Intel Pentium J1900 QuadCore CPU 2.0GHz
- 4GB RAM memory, 128GB Industrial SSD
- Supports Windows 10 & Linux (32Bit, 64Bit)
- Anti-glare surface treatment (chemical etching)
- 10-Finger-Multi Touch Capacitive Touch Panel
- 3mm cover glass with 6H surface hardness
- Optically bonded Touch Panel to LCD Panel
- Patented IP65 front with silicon seal
- Integrated W-LAN
- Shell structure can be customized
Enquiry about Sunlight Brightness Monitor Waterproof IP65 32 inch Embedded Industrial HMI Screen Touch Panel
- Description
- download
- Packing & Shipping
Description
Touch PC
Embedded Monitor
32” Embedded Monitor capacitive touch all-in-one computer adopts a fanless design, and the IP65 front baffle is suitable for
harsh application environments. The whole system adopts an AG cover plate and full bonding technology at the
same time. The low-power consumption J1900 makes the operation more stable. The plentiful interface
options and the customization can be used in various fields.
Optical Bonding
Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, and increase the light transmittance, also the display effect is more clear and transparent.
PC System
| CPU | J1900//J1800 |
| Graphic GPU | Intel HD Graphics |
| Audio | 2*JACK, ALC662 sound card chip |
| Memory | 1xSO-DIMM DDR3L 1066/1333MHz Memory， Max. 8GB |
| Storage (switchable) | Industrial 128GB SSD |
| Driver Support | Win10; Linux; 32Bit/64Bit |
| Pre-installed OS | Linux Ubuntu |
Display Characteristics
| Design | Open Frame |
| Diagonal | 31.5″, 80cm |
| Panel | LCD, Anti-glare coating |
| Native resolution | 1920(H) ×1080(V) (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 350 cd/m |
| LED Life Time | 30,000 Hour |
| Contrast Ratio (Center of screen) | 3000:1 |
| Viewable area W x H | 697.4(W)x 391.8(H) |
| Response Time | 18ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Support Color | 16.7M colors |
Touch
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch accuracy | ±2mm |
| Surface Treatment | Anti-glare (chemical etching) |
| Touch interface | USB |
| Supported operating systems | win7 、win10、 Linux 、android |
| Through-Glass | 3mm |
| Touch scheme | EEST |
Mechanical
| Fanless design | yes |
| MTBF | 30,000 Hour |
| Cable management system | yes |
| Operation temperature | 0°C – 50°C |
| AngeStorage temperature range | – 20°C – 60°C |
Power Management
| Power supply unit | External |
| Power supply | DC 12V |
| Output power | 60W |
| Rated output current | 5A |
Installation Method
| VESA | 100mm*100mm Mounted at side |
External Connectors
| DC-In | ×1 |
| HDMI | ×1 |
| USB | ×4 |
| Audio(Line-out,Mic-in) | x2 |
| VGA | x1 |
| RJ45 | x1 |
| Com | x2 |
Internal Connectors
| F_Panel | ×1 |
| F_Audio | ×1 |
| F_USB2.0 Pin | ×4 |
| LPT | ×1 |
| Mini-PCIe | ×2 |
| 2×COM Pin/6xCOM Pin(Optional) 5*RS232/1*RS485 | |
| HDMI | ×1 |
| JVGA | ×1 |
| Speaker | ×1 |
Dimensions / Weight
| Product Dimensions W x H x D | 752 x 457 x 58.8mm |
| Box dimensions W x H x D | 800 x 520 x 85mm |
| Weight (without box) | 13kg |
| Weight (with box) | 15kg |
| Product country origin | China |
[wpfd_single_file id=”999″ catid=”54″ name=”32 J1900 Flyer”]
[wpfd_single_file id=”998″ catid=”54″ name=”32 pc drawing”]
