16.9 inch IP65 Waterproof 1600cd/㎡Industrial Bar Type LCD Monitor

Key Specifications and Features

– Panel: LCD, Anti-glare coating
– Resolution: 1920(H) ×598(V)
– Aspect ratio: 960:269
– Brightness: 500 cd/m – 1600 cd/m (Customization)
– Contrast Ratio: 3000:1
– Response Time: 18ms
– Support Color: 16.7M colors
– Touchpoints: 10
– Analog signal input: none

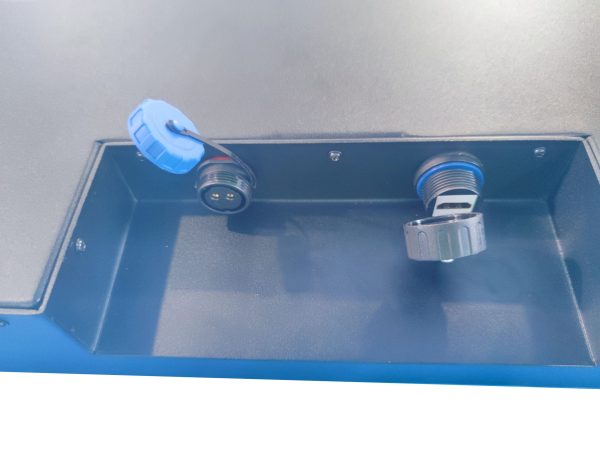

– Digital signal input: HDMI x 1 Waterproof Interface
– Power supply: DC 12V
– Output power: 36W

描述

16.9 inch IP65 Waterproof 1600cd/㎡Industrial Bar Type LCD Monitor


The 16.9-inch Ultra-Wide Stretched Bar Type LCD Monitor design has an AG coating that effectively reduces glare. It is equipped with an HDMI waterproof interface. In addition, the 2K high-definition monitor screen can display delicate picture quality. Furthermore, optical bonding between the touch screen and LCD modules makes the image more realistic.

Optical Bonding Technology

Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent. Learn More >

Display Characteristics

Diagonal16.9″
PanelLCD, Anti-glare coating
Native resolution1920(H) ×598(V)
Aspect ratio960:269
Brightness500 cd/m – 1500 cd/m (Customization)
LED Life Time30,000 Hours
Contrast Ratio (Center of the screen)3000:1
Viewable area W x H700(W)x 132.2(H)
Response Time18ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color16.7M colors

Touch

Touch technologyprojective capacitive
Touch points10
Touch accuracy±2mm
Touch methodfinger, glove (latex), capacitive stylus
Touch interfaceUSB
Supported operating systemswin7 、win10、 Linux 、android
Through-Glass3mm
Touch schemeEETI

Interfaces / Connectors / Controls

Analog signal inputnone
Digital signal inputHDMI x 1

Features

ExtraAnti-glare glass
embedded modeyes
Max. non-stop operating time24/7
Glass thickness3mm
Glass hardness6H
Ball drop testyes
Impact testingIK-7
IP65yes
MTBF50,000 Hours
Storage Temperature Range– 20°C – 60°C
Operation Temperature0°C – 60°C

Accessories Included

Power Supplyx1
USB Touch Linex1
Product Descriptionx1

Power Management

Power supply unitExternal
Power supplyDC 12V
Output power36W
Rated output current7A

Installation Method

VESA75mm*200mm

Dimensions / Weight


Product dimensions W x H x D750 x 188 x 70mm
Box dimensions W x H x D950 x 228 x 90mm
Weight (without box)8.6kg
Weight (with box)10kg
Product country originChina
