Industrial 15.6” Fanless IP65 Touch All-in-One Computer for Harsh Environments
Key Specifications and Features
– Panel: LCD, Anti-glare coating
– Resolution: 1920(H) ×1080(V)
– Aspect ratio: 16:9
– Contrast Ratio: 3000:1
– Response Time: 18ms
– Support Color: 16.7M colors
– Touchpoints: 10
– Digital signal input: HDMI x 1
– Power supply: AC 12v
– Consume power: 36W
Enquiry about Industrial 15.6'' Fanless IP65 Touch All-in-One Computer for Harsh Environments
- 描述
- DOWNLOADS
- Packing & Shipping
描述

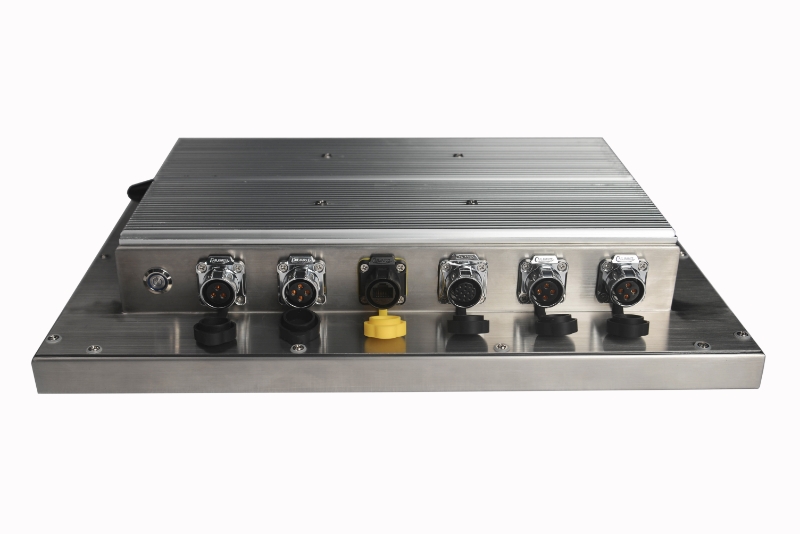

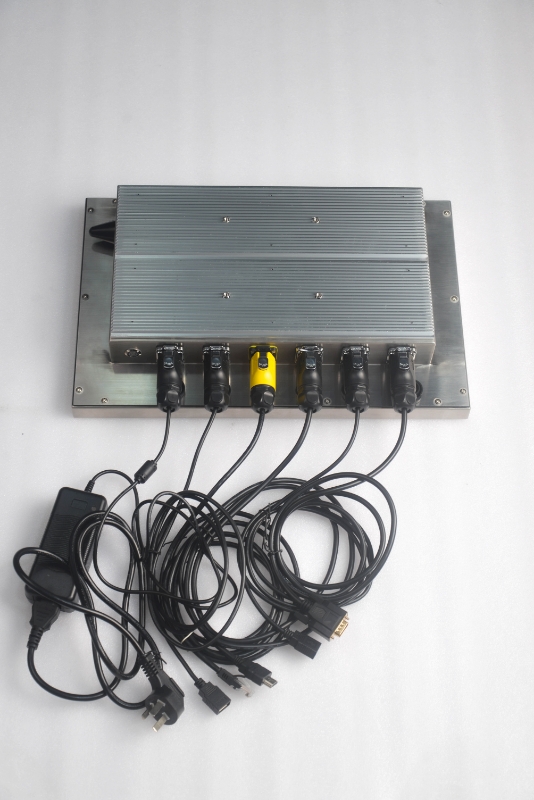

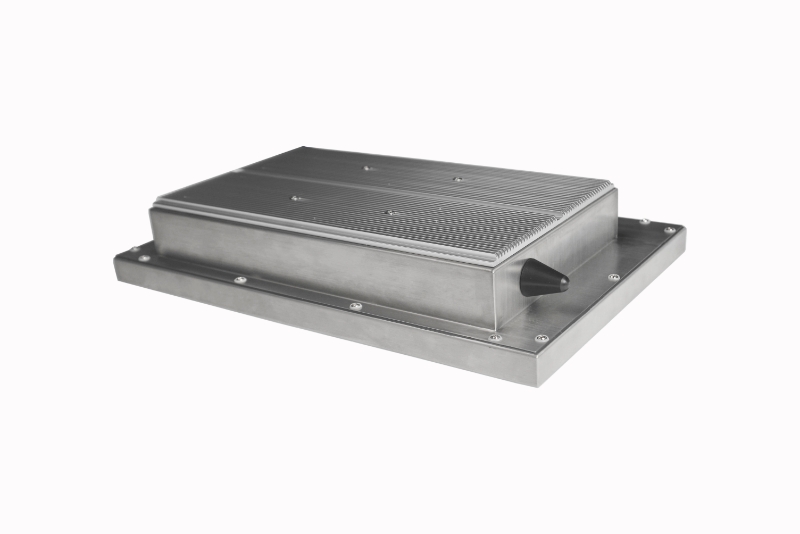

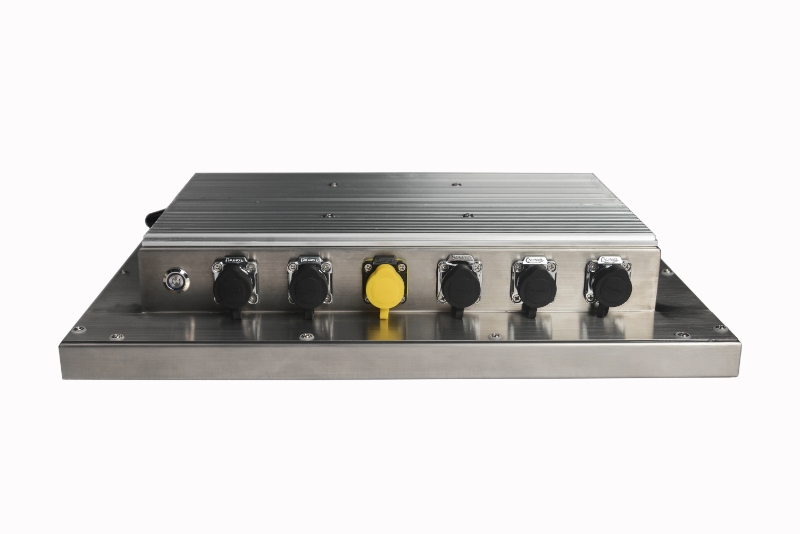

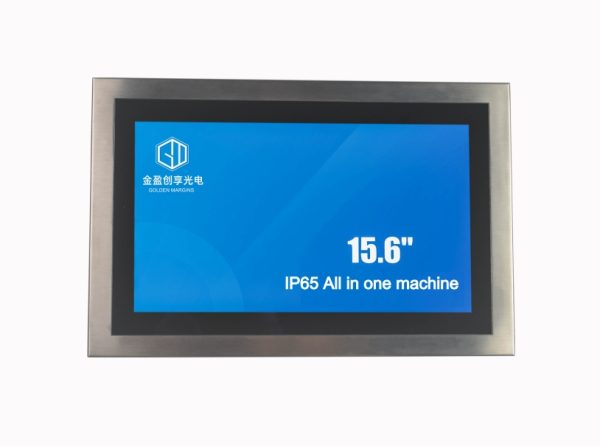

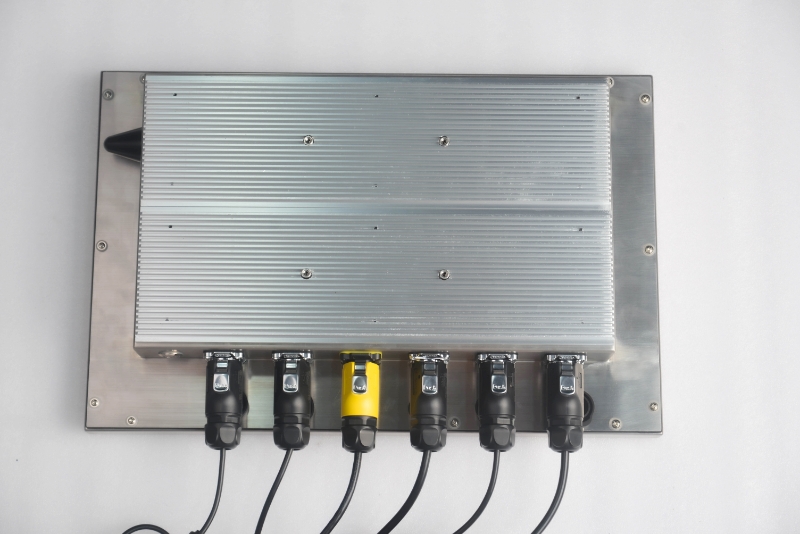

Industrial 15.6” Fanless IP65 Touch All-in-One Computer for Harsh Environments
IP65 Touchscreen PC
15.6” capacitive touch all-in-one computer adopts a fanless design, and the IP65 baffle is suitable for harsh application environments. The whole system adopts AR cover plate and full bonding technology at the same time. The low-power consumption J1900 makes the operation more stable. The plentiful interfaces options and the customization can be used in various fields.
Optical Bonding Technology
Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent. Learn More >
Display Characteristics
| Diagonal | 15.6″ |
| Panel | LCD, Anti-glare coating |
| Native resolution | 1920(H) ×1080(V) |
| Aspect ratio | 16:09 |
| Brightness | 450 cd/m |
| LED Life Time | 50,000 Hours |
| Contrast Ratio (Center of screen) | 1000:1 |
| Viewable area W x H | 344.2(W)x 193.6(H) |
| Response Time | 18ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Support Color | 16.7M colors |
Touch
| Touch technology | projective capacitive |
| Touch points | 10 |
| Touch accuracy | ±2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | win7 、win10、 Linux 、android |
| Through-Glass | 3mm |
| Touch scheme | EETI |
Interfaces / Connectors / Controls
| speaker | x 1 |
| Digital signal input | HDMI x 1 |
Features
| fanless design | yes |
| Cable management system | yes |
| Max. non-stop operating time | 24/7 |
| F_Audio | x 1 |
| F_Panel | x 1 |
| DC-In | x 1 |
| USB | x 2 |
| RJ45 | x 1 |
| Com | x 1 |
| Water tight seal | yes(front) |
General
| OSD languages | EN CN |
| Control buttons | Power on startup |
Internal Connectors
| F_USB2.0 Pin | x 4 |
| Mini-PCIe | x 1 |
| LTP | x 2 |
| JVGA | x 1 |
| RS485 | x 1 |
| COM Pin | x 2 |
Accessories Included
| Cables | power, USB |
| Other | Touch Panel Driver |
| Cable cover | yes |
Power Management
| Power supply unit | external |
| Power supply | AC 12V |
| Output power | 36W |
| Rated output current | 3A |
Installation Method
| VESA | 100mm*100mm Mounted at Side |
Dimensions / Weight
| Product dimensions W x H x D | 432×193.6x 77.9mm |
| Box dimensions W x H x D | 650 x 360 x 90mm |
| Weight (without box) | 7.6kg |
| Weight (with box) | 9kg |
| Product country origin | China |
