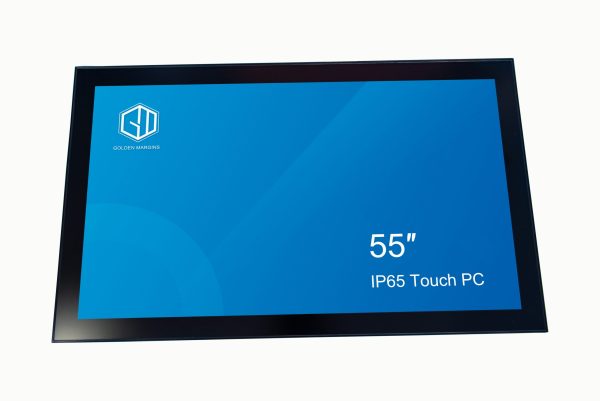

55inch IP65 Waterproof Industrial Lcd Touch Display Touch Screen Monitor with High Brightness

Key Specifications and Features

– Panel: LCD, Anti-glare coating
– Resolution: 1920(H) ×1080(V)
– Aspect ratio: 16:9
– Contrast Ratio: 3000:1
– Response Time: 12ms
– Support Color: 16.7M colors
– Touchpoints: 10
– Analog signal input: VGA x1
– Digital signal input: HDMI x 1
– Power supply: AC 120V-240V 60Hz
– Consume power: 200W

描述

Industrial IP65 LCD High Brightness 55 inch panel Monitor
with AG Touch display and bonding


LCD panel

55 inch Industrial IP65 LCD panel high-brightness touchscreen monitor with AG coating that effectively reduces glare. It comes with an HDMI interface and a VGA interface, making it very convenient for users to choose from. In addition, the 2K high-definition monitor screen can display delicate picture quality. Furthermore, optical bonding between the touch screen and LCD modules makes the image more realistic.

Optical Bonding Technology

Optical bonding between the touch screen and the LCD module can effectively reduce the refraction of the air, increase the light transmittance, also the display effect is more clear and transparent. Learn More >

Display Characteristics

Diagonal55″
PanelLCD, Anti-glare coating
Native resolution1920(H) ×1080(V)
Aspect ratio16:09
Brightness1000 cd/m
LED Life Time30,000 Hours
Contrast Ratio (Center of screen)3000:1
Viewable area W x H697.4(W)x 391.8(H)
Response Time12ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Support Color16.7M colors

Touch

Touch technologyprojective capacitive
Touch points10
Touch accuracy±2mm
Touch methodfinger, glove (latex), capacitive stylus
Touch interfaceUSB
Supported operating systemswin7 、win10、 Linux 、android
Through-Glass3mm
Touch schemeEETI

Interfaces / Connectors / Controls

Analog signal inputVGA x1 (Optional)
Digital signal inputHDMI x 1

Features

ExtraAnti-glare glass
embeded modeyes
Max. non-stop operating time24/7
Glass thickness3mm
Glass hardness6H
Ball drop testyes
Impact testingIK-7
Water and dust protectionIP65 (front)
Housing (bezel)metal
Water tight sealyes(front)

General

OSD languagesEN CN
Control buttonsPower on startup

Mechanical

OrientationLandscape, Portrait
Fanless designyes
MTBF30,000 Hours
Cable management systemyes
Operation temperature0°C – 70°C
AngeStorage temperature range-20°C – 70°C

Accessories Included

Cablespower, USB
OtherTouch Panel Driver
Cable coveryes

Power Management

Power supply unitInternal Power Supply Board
Power supplyAC 120V-240V 60Hz
Output power200W
Rated output current8A

Installation Method

VESA100mm*200mm Mounted at Side

Dimensions / Weight


Product dimensions W x H x D780 x 474.6 x 76.7mm
Box dimensions W x H x D1000 x 700 x 93mm
Weight (without box)17kg
Weight (with box)25kg
Product country originChina

Packing & Shipping
